Jacking Points For Lifting The Vehicle, Option B

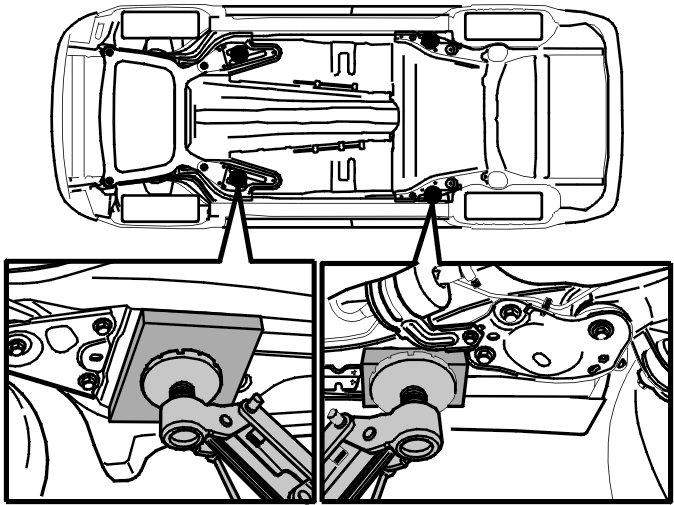

Fig 1: Identifying Vehicle Lift Points (Alternative B)

Courtesy of VOLVO CARS CORPORATION

The following jacking points must be used when lifting the vehicle. The jacking plate must have a rubber pad to prevent damage to the vehicle.

Front lift:

A wooden load relief plate (200*200*20 mm) must be used behind the sub-frame bracket.

Rear lift:

A wooden spacer (170*80*50 mm) must be used in front of the sub-frame bracket.
