Driver Information Module (DIM), V70 Connector End View (5/1)

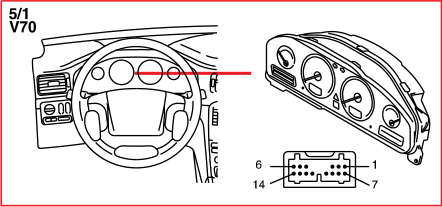

Fig 1: Driver Information Module (DIM), V70 Connector End View (5/1)
G10843460Courtesy of VOLVO CARS CORPORATION
