Installing The Control System
NOTE:
Ensure the lever for the gear selector is set to neutral.
Align the control system on the lever for the gear selector.
Install:

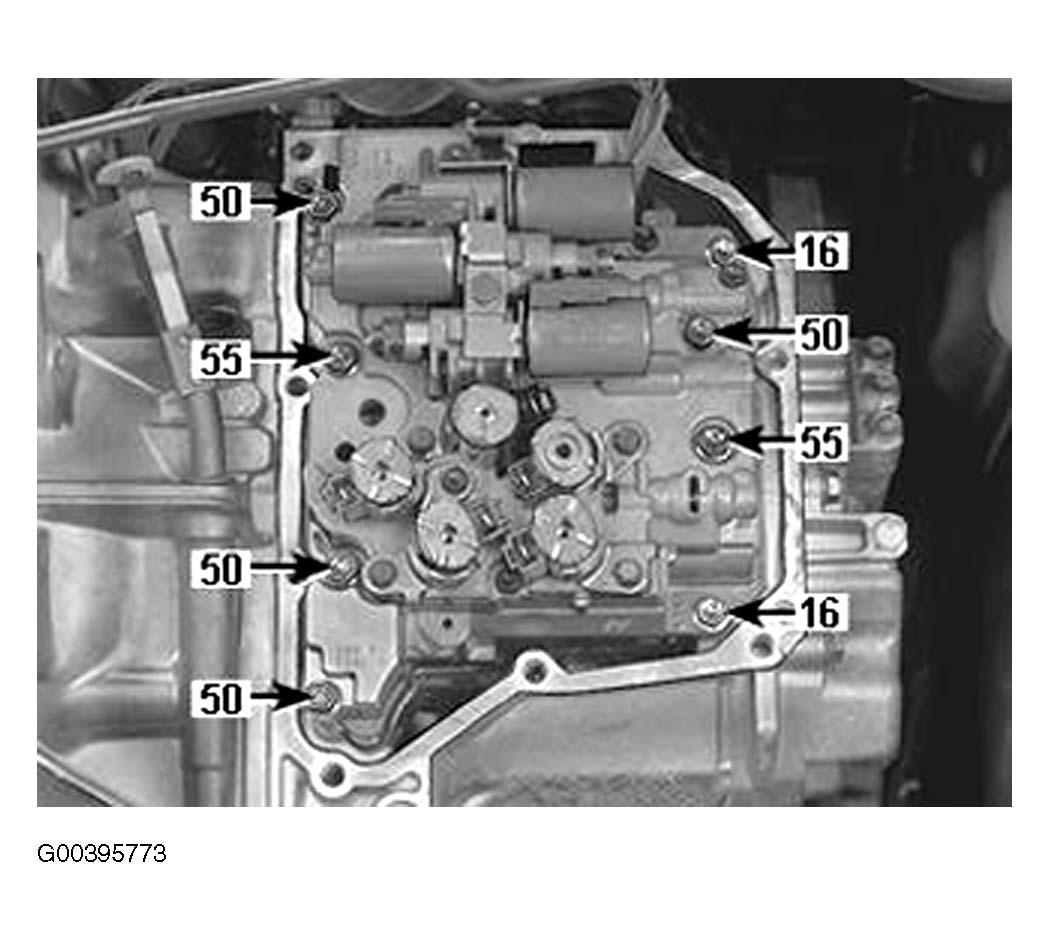

- the screws for the control system. See Figure.
- a new gasket for the cover on the control system. Note that the screws are of different lengths (measured in mm).
Tighten the screws alternately to light contact. Then tighten alternately. Tighten to 10 Nm.
