Ceiling Light Switch Unit, V70 Connector End View (3/117)

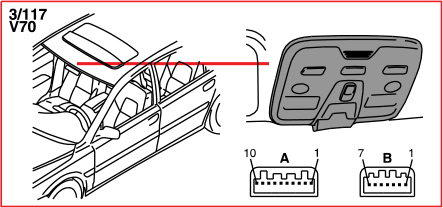

Fig 1: Ceiling Light Switch Unit, V70 Connector End View (3/117)
G10843398Courtesy of VOLVO CARS CORPORATION
