Installing The Control Module

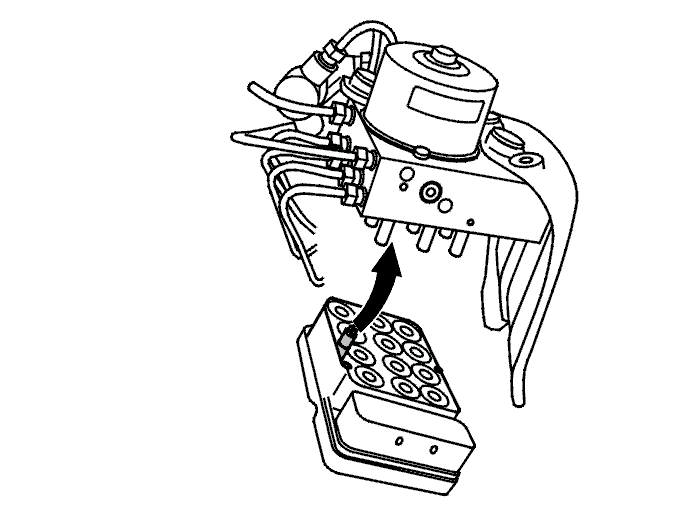

Fig 1: Identifying Brake Control Module

Courtesy of VOLVO CARS CORPORATION

Position the control module on the brake lines.

Center the control module with the ABS modulator valves so that the terminal pins are correctly positioned in the modulator.

Press the control module up so that the terminal pins connect.

Install:

• the screws.

  Tighten to 1.8 Nm

• the connector on the control module. Lock the connector
• the integrated relay/fusebox and the connector for the ABS unit. See INTEGRATED RELAY / FUSEBOX, INSTALLING
• the integrated relay / fusebox.

  Tighten the screw. Tighten to 10 Nm

• the air cleaner (ACL) housing. See AIR CLEANER (ACL) HOUSING, INSTALLING .
