Removing The Climate Control Module (CCM)

Fig 1: Detaching Panel At Gear Selector Lever

Courtesy of VOLVO CARS CORPORATION

Detach the panel at the gear selector lever as shown in the illustration.

Twist the panel so that it is as far from the center console as possible.

Fig 2: Identifying Bracket Lower Screws & Infotainment Control Module (ICM)

Courtesy of VOLVO CARS CORPORATION

Remove the lower screws from the bracket.

Angle out the entire infotainment control module (ICM) and the dashboard environment panel as shown in the illustration.

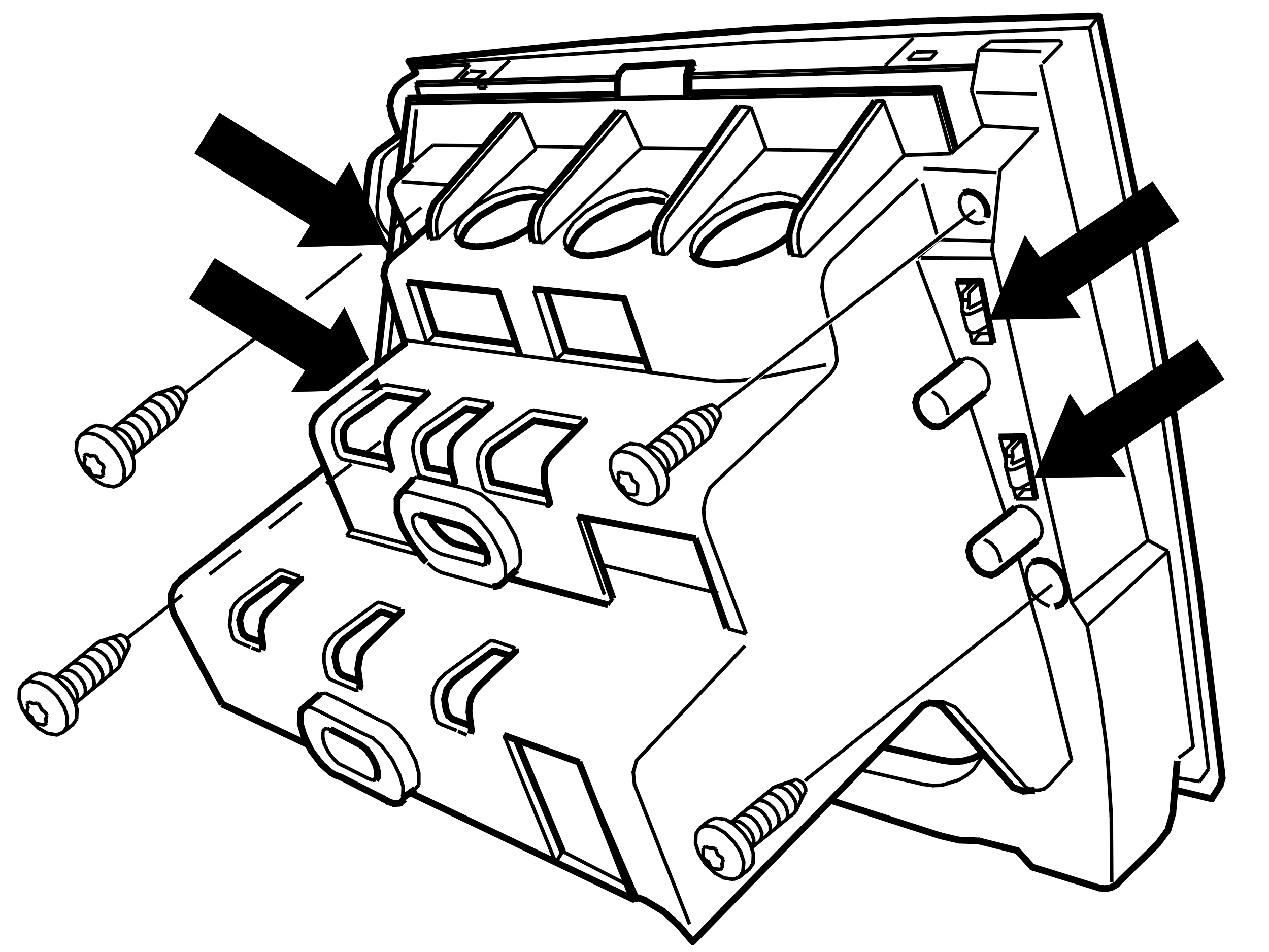

Fig 3: Identifying Infotainment Module Connectors And Screws

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Turn the infotainment module with the dashboard environment panel.

Remove the four screws as shown in the illustration.

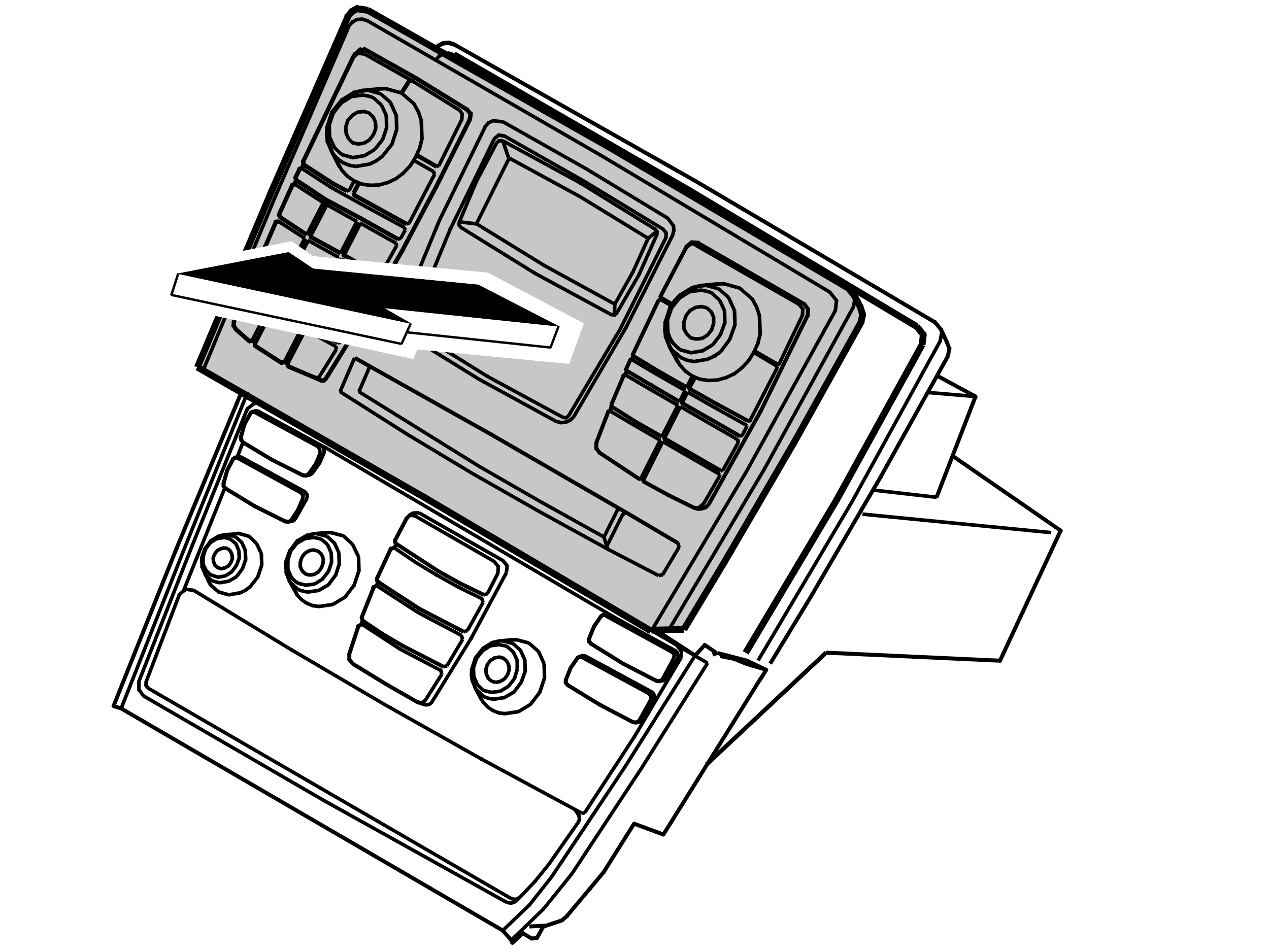

Fig 4: Identifying Infotainment Control Module Removal

Courtesy of VOLVO CARS CORPORATION

Press the four clips and remove the infotainment control module by pulling it straight out as shown in the illustration.

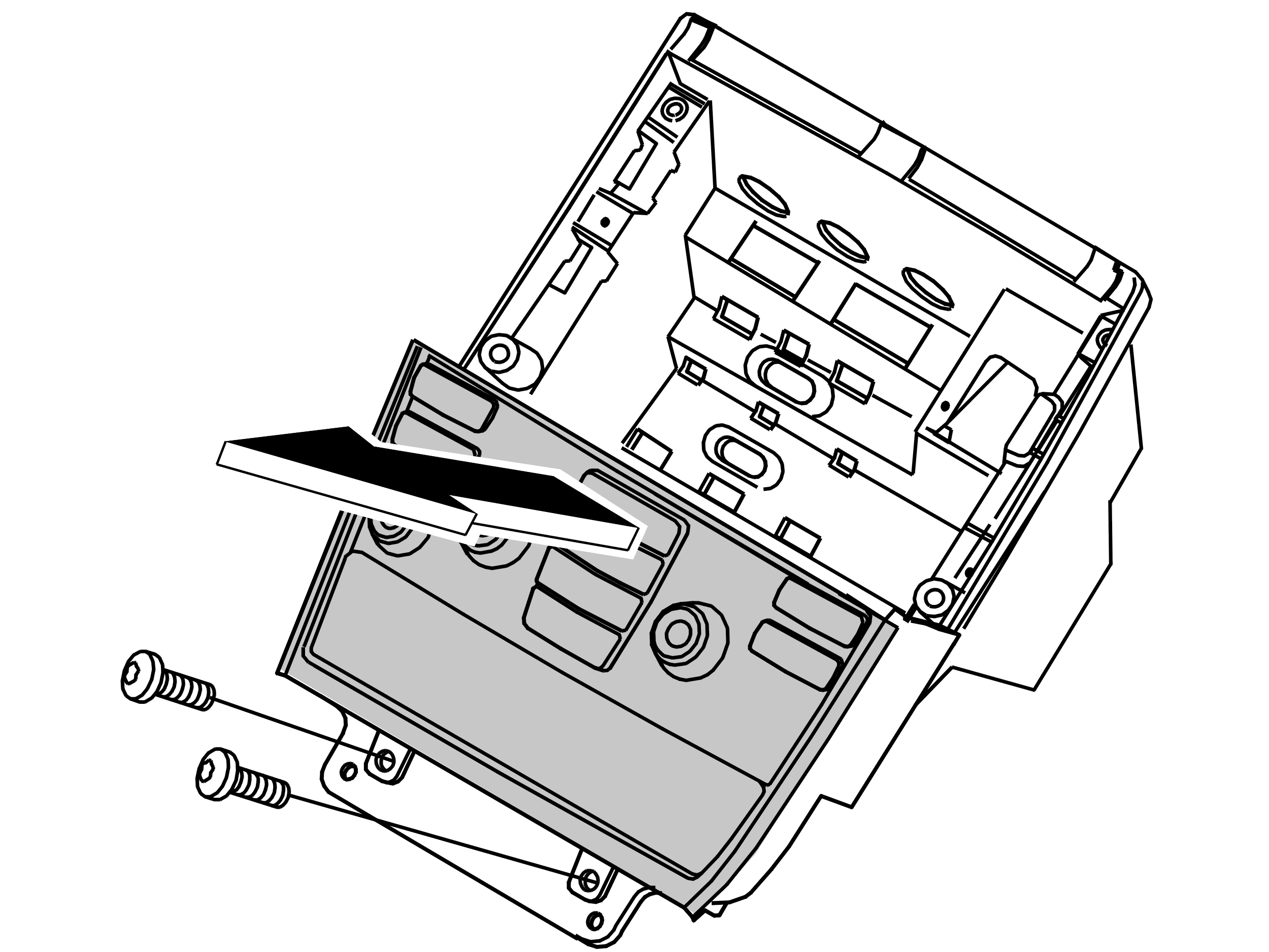

Fig 5: Identifying Dashboard Environment Panel Removal

Courtesy of VOLVO CARS CORPORATION

Slacken off the two screws at the lower edge of the dashboard environment panel.

Pull the dashboard environment panel straight out from the bracket.
