Programming a new control module (only D4192T3/T4)

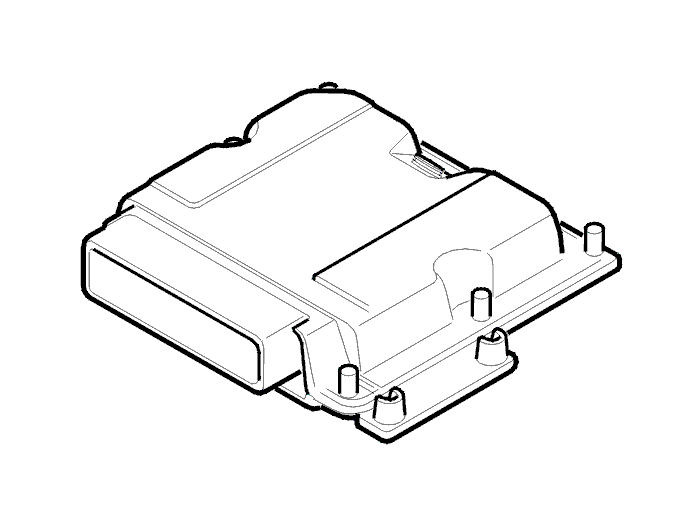

Fig 1: Engine Management System, MSA 15.5 (D4192T2)/EDC 15C (D4192T3/T4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

PIN codes must be programmed into the control module after a new EDC 15C engine control module (ECM) has been installed in the car. The PIN codes are retrieved from the Volvo central database. The new control module must be installed in the car before this programming is carried out.
