Replacing the fog lamp control module
- Remove the combined instrument panel, see Instrument .

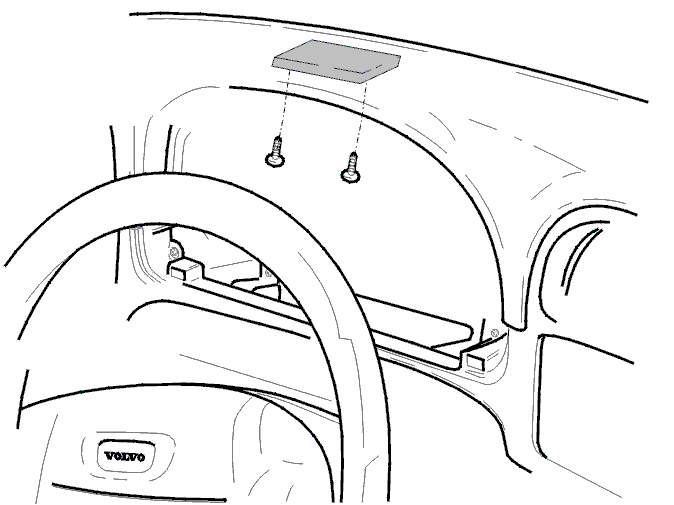

- Remove the two upper screws from the instrument.
- Remove the control module.
NOTE:
The relay is only located here if the car is equipped with a fog tail lamp. The relay is secured with a clamp.
