Replacing the trip computer switch

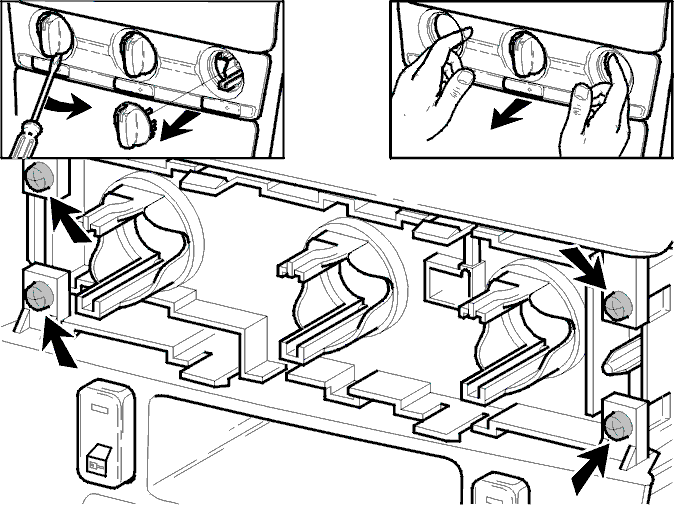

Fig 1: Removing Knobs From Heater Control And Inserting Small Screwdriver At Rear Edge Under Each Knob

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the knobs from the heater control; insert a small screwdriver at the rear edge under  each knob.
• Remove the heater control panel (insert two fingers into the opening and carefully pull out the control panel).
• Remove the four torx mounting screws.

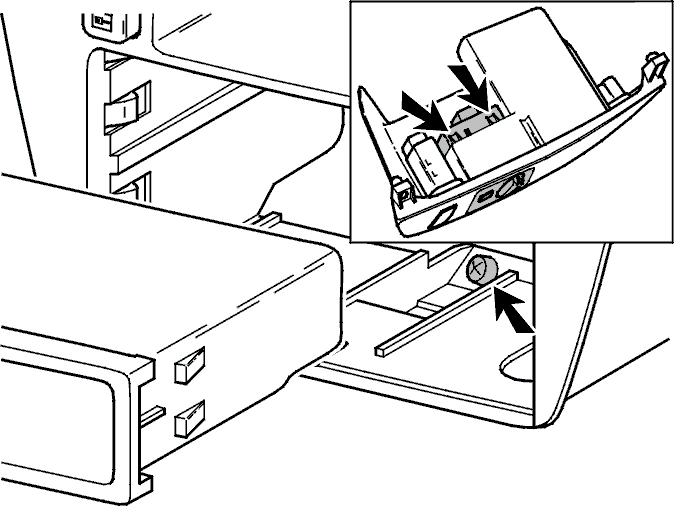

Fig 2: Removing Rear Section Of Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the rear section of the bracket. Carefully press the edge with a screwdriver.

• Remove the screws behind the rear section of the bracket. Pull the bracket forward slightly.
• Press in the retaining clips on the reverse of the trip computer switch.

Reinstall the components in reverse order.
