Replacing warning lamp switch

Fig 1: Removing Front Plate Using Fingers In Selector Knob Holes

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the knobs from the heater control; insert a small screwdriver at the rear edge under  each knob.
• Remove the heater control panel (insert two fingers into the opening and carefully pull out the control panel).
• Remove the two upper mounting screws (torx) for the heater control panel.

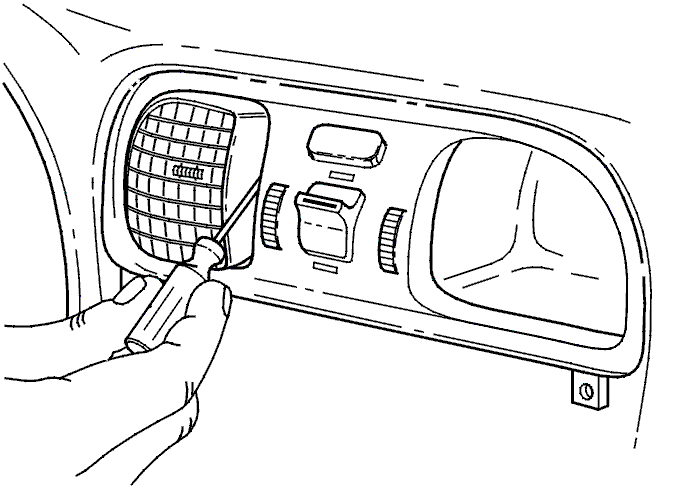

Fig 2: Prying Out Ventilation Vents With Small Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pry out the ventilation vents with a small screwdriver.

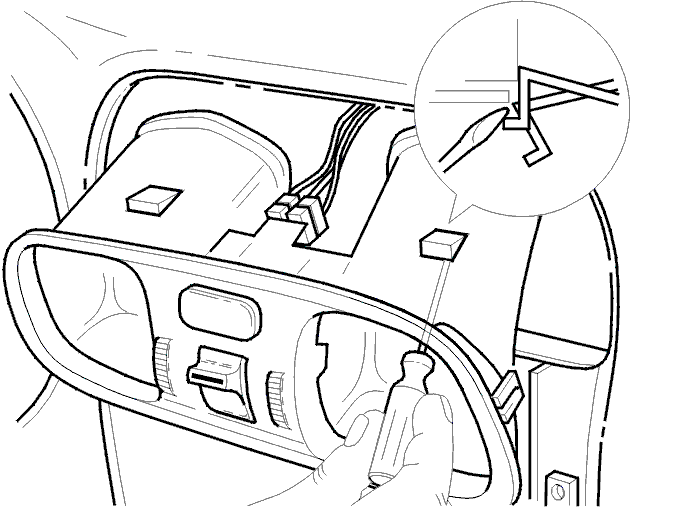

Fig 3: Pressing Catches On Panel Downwards From Inside Using Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press the catches on the panel downwards from the inside using a screwdriver. Pull the panel forward slightly.
• Press in the two retaining clips on the switch. Pull the switch out backwards.
• Disconnect the connector.

Reinstall the components in reverse order.
