Programming the Disengagement Time For Rear Windshield And Door Mirror Heating

NOTE: The heating for the rear windshield and door mirrors is engaged using the button on the climate control module. This function is used to program the disengagement time for rear windshield and door mirror heating. The heating is either engaged as long as the function is activated using the button or disengages automatically after 12 minutes.

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition on
Read off and program the climate control module. Programmable data is: Disengagement after 12 minutes or No disengagement .
Read off the disengagement time. Make a note of the value. If the programming is not correct, program in the correct version.

Select "Continue" to exit programming.

Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA
Courtesy of VOLVO CARS OF NORTH AMERICA.

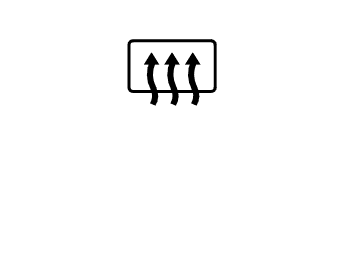

Fig 3: Identifying Defroster Button
Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue
Refer to Information
