Installing Transmission Control Module (TCM)

NOTE: Ensure that the arrows are opposite each other. See Fig 1.

NOTE: Shift the gear selector lever to neutral.

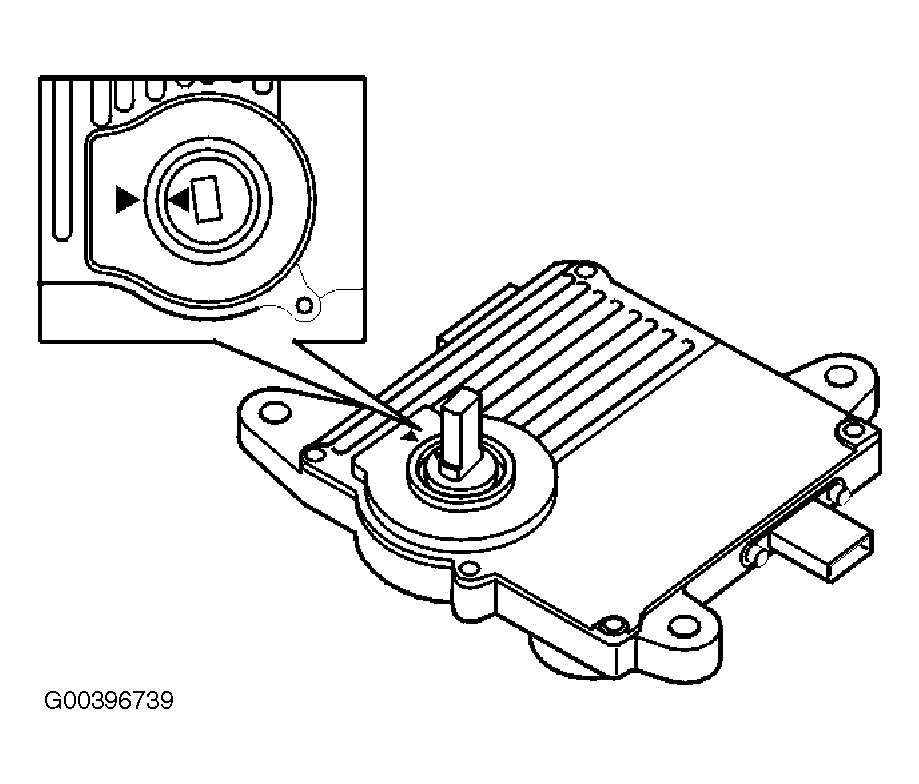

Fig 1: Locating TCM Installation Arrows

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the control module. Do not damage the terminal pins
the 3 x M8 screws
the bracket
the M8 screw for the bracket
the 2 connectors
the lever, 1 nut. Tighten. See: TIGHTENING TORQUE .
the battery negative lead. See: NOTE WHEN DISCONNECTING/CONNECTING THE BATTERY LEAD .
