Removing Transmission Control Module (TCM)
CAUTION:
Do not touch the control module terminal pins with your fingers. Static electricity (electric static discharge) may damage components in the control module.

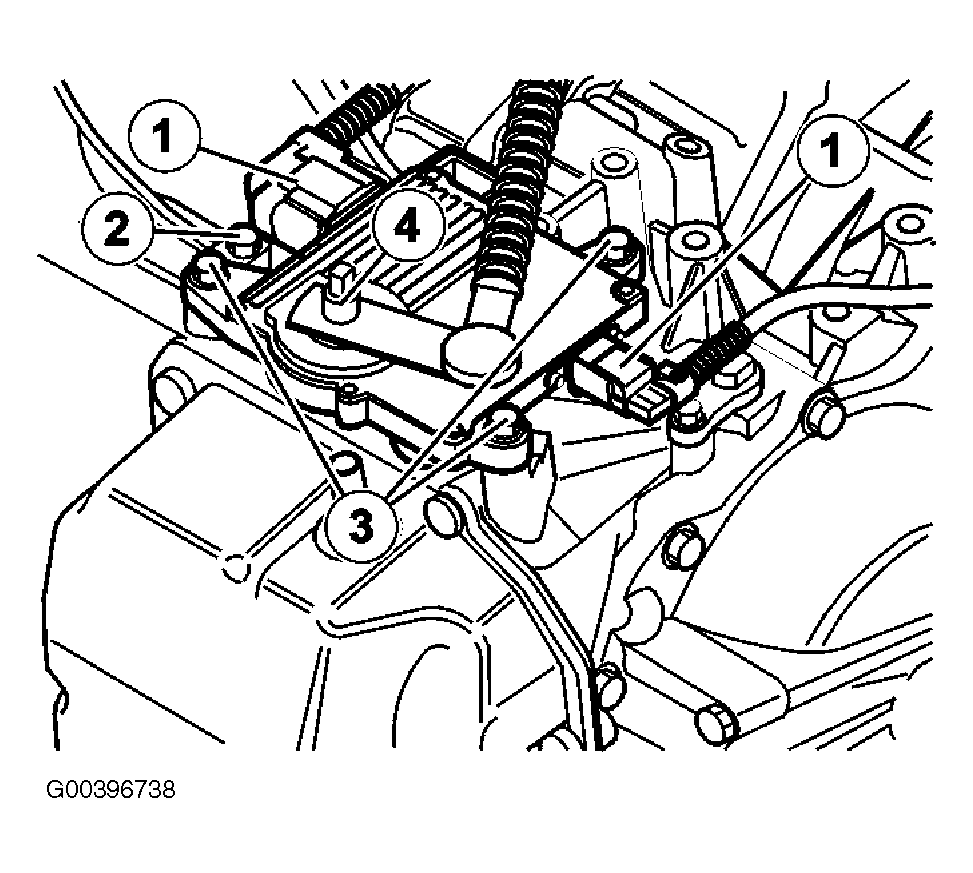

Remove:
- the 2 connectors (1). See Fig 1.
- the M8 screw for the bracket (2)
- the bracket
- the 3 M8 screws (3)
- the nut (4)
- the lever
- the control module. Do not damage the terminal pins.
