Programming the Seat Heater In the Left Seat

NOTE: This function is used to program the heater for the left seat. In addition to activating the seat heater, the heat level must adapted for the type of upholstery. The maximum temperature for seat heaters with standard upholstery is 40°C (104°F). The maximum temperature for seat heaters with leather upholstery is 43°C (109°F).

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition on
Read off and program the climate control module. Select the temperature level.
CAUTION: Programming must be carried out so that the high temperature setting is higher than the low temperature setting. The recommended difference between high and low levels is at least two degrees. Do not exceed the maximum level for the type of upholstery.

Read off the seat heater. Make a note of the value. If the programming is not correct, program in the correct version.

Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA
Courtesy of VOLVO CARS OF NORTH AMERICA.

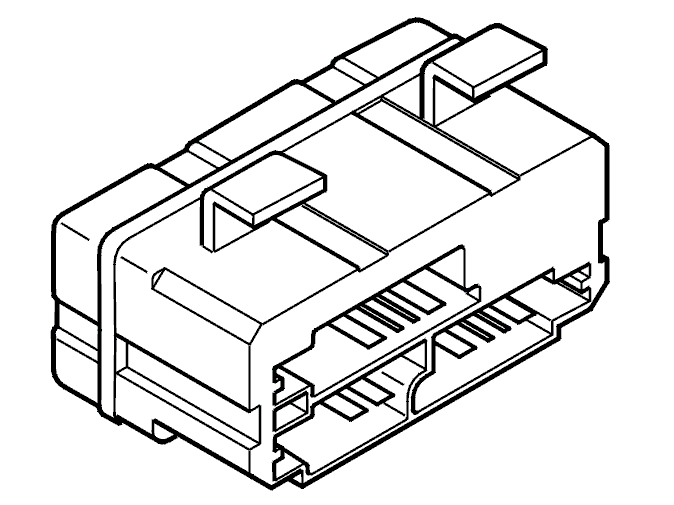

Fig 3: Identifying 3-Bit Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.

Do you wish to continue to program the next setting?

YES
Refer to Programming the Seat Heater In the Right Seat
NO
Refer to Information
