Removing The Control Module
NOTE:
Do not touch the control module terminal pins with your fingers. Static electricity may damage components in the control module.

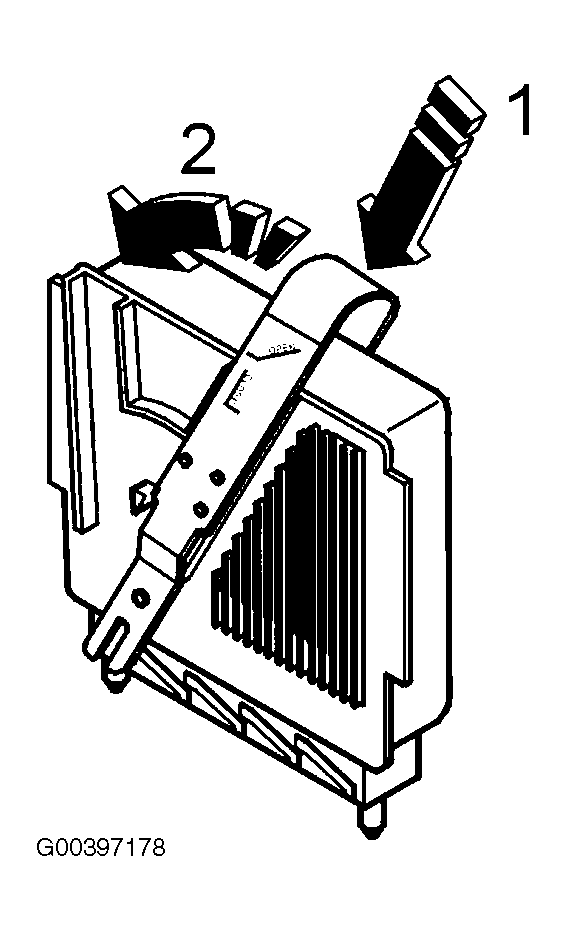

Insert tool 999 5722 (1) in the car around the control module. See Fig 1 . Move the upper section of the tool backwards as far as it will go (2). Raise the tool. Carefully pull up the control module.

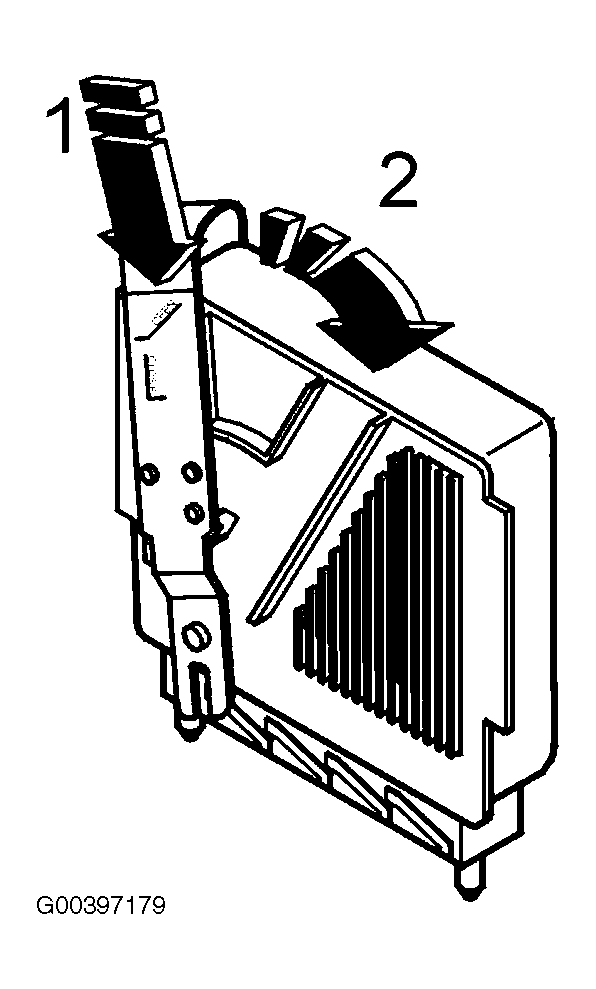

Carefully press the control module down into the grooves on the inside of the control module box. See Fig 2 . Press down all the way. Insert tool 999 5722 around the control module. Move the upper section of the tool forwards to stop and pull it up. Press the cover into place over the control modules. Check that the air ducts are correctly positioned. Connect the battery negative lead. First read NOTE WHEN DISCONNECTING/CONNECTING THE BATTERY LEAD .
