Installing Components

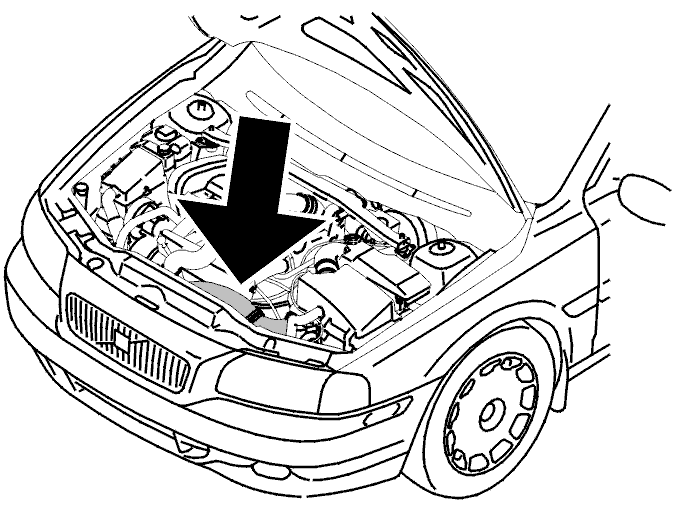

Fig 1: Identifying Air Intake Between Front Cover Plate And Air Cleaner Housing
GLL103011Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the charge air pipe between the electronic throttle module (ETM) and the charge air cooler (CAC).

NOTE:

Heat the pipe at the connections to facilitate installation.

Install the intake pipe between the front cover plate and the air cleaner (ACL) housing.
