Engine Controls - Reuse Of ECM's
Title Reuse of ECM - P1 and P2Ref No US7871.3.2 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 2850
Func Desc combined control system
Status Released
Status Date 05-17-2012
Issue Date 05-17-2012
Reference
Attachment

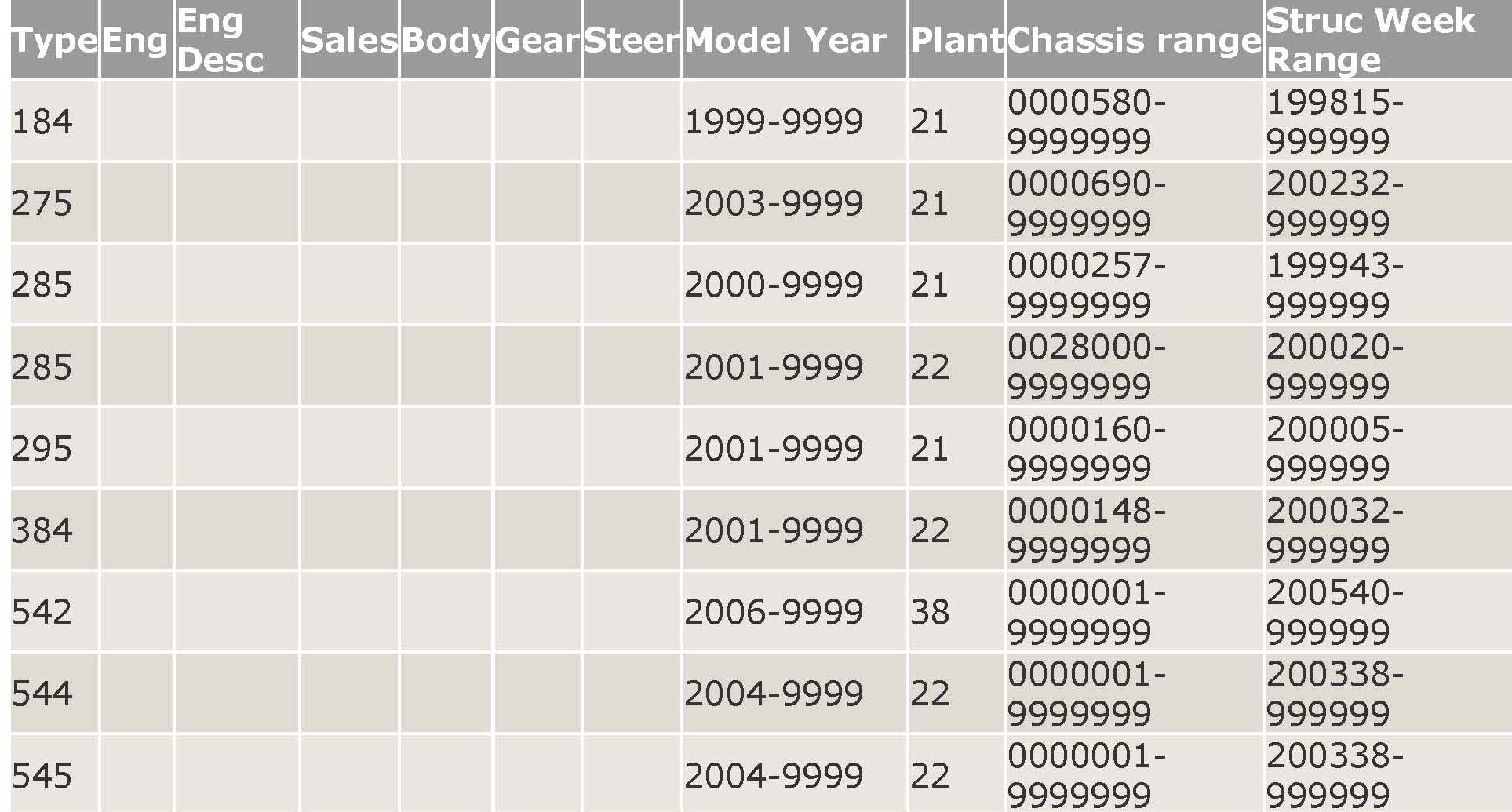

Vehicle Type

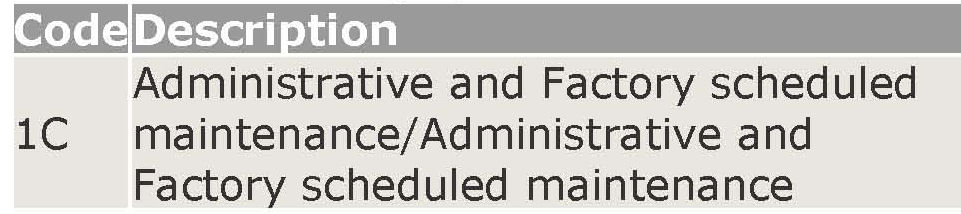

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
DESCRIPTION:
It is now possible to reuse a programmed ECM (Engine Control Module). This was earlier impossible due to vehicle unique Immobilizer codes. Benefits for this feature are several:
SERVICE:
NOTE!
Immobilizer codes can only be erased with VIDA in the same car as ECM was programmed for. To erase, follow these steps:
- Connect vehicle to VIDA and choose Software Manager.
- Order Software Product, P/N 8691406 for P2 cars
- Order Software Product, P/N 8691430 for P1 cars
- When software is available, download to vehicle.
ECM is now "virgin" and can now be swapped with another vehicle or used later.
NOTE! Sometimes the car may start, even though the "erase" SW has been downloaded.
This is no error, and it will still be possible to do a ECM reload in another car.
VSTG OPERATION NUMBER: 36004-2.
