Location Of Abs Components (2000-2004)

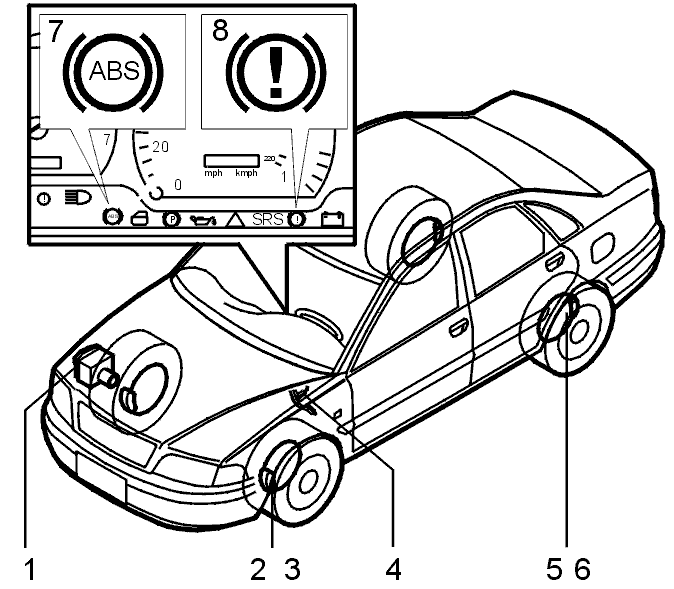

Fig 1: Location Of ABS Components
GLL112812Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Control module and ABS hydraulic modulator
  2. Front wheel sensor
  3. Front pulse wheel
  4. Stop (brake) lamp switch
  5. Rear wheel sensor
  6. Rear pulse wheel
  7. ABS warning lamp
  8. EBD warning lamp
