Installing The Crankshaft Adjustment Tool

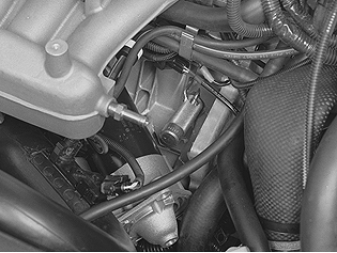

Fig 1: Identifying Starter Motor
GLL108757Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the mounting screws for the starter motor.

Pull out the starter motor and place it to one side.

Remove the blind cover plug from the hole for the adjustment tool. Turn the crankshaft clockwise slightly.

Install: 9995451 . Ensure that the tool bottoms out against the cylinder block.
