Installing The Crankshaft Adjustment Tool

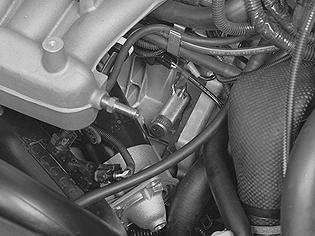

Fig 1: Installing Adjustment Tool 999 5451

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the starter motor mounting screws. Pull out the starter motor and put it aside.

Remove the blind cover plug for the adjustment tool hole. Turn the crankshaft clockwise slightly. Install the adjustment tool 9995451 . Ensure the adjustment tool bottoms against the engine block.
