Installing The Climate Control Unit: Notes

Fig 1: Floor Seals

Courtesy of VOLVO CARS CORPORATION

Check and replace the floor seals if necessary.

Install the front seal for the refrigerant pipe.

Check and replace the O-rings.

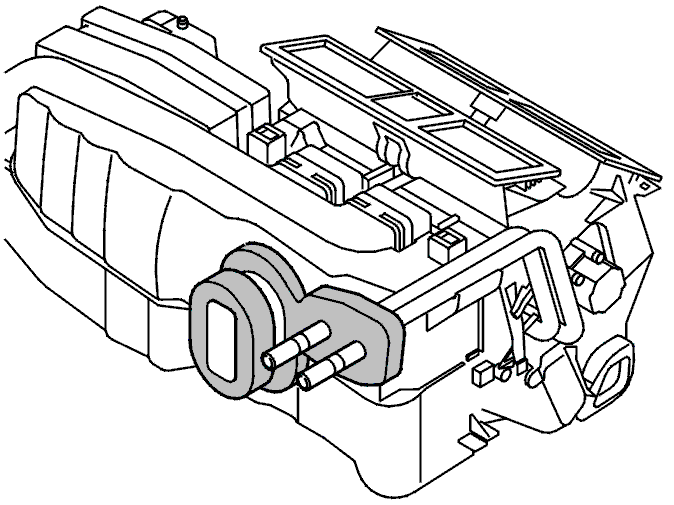

Fig 2: Front Seal For Refrigerant Pipe

Courtesy of VOLVO CARS CORPORATION
