Inflatable Curtain Module: Installation
CAUTION:
The IC (inflatable curtain) module must not be reinstalled if it has been dropped onto the ground or similar.
- Lift in and open the packaging according to the instructions

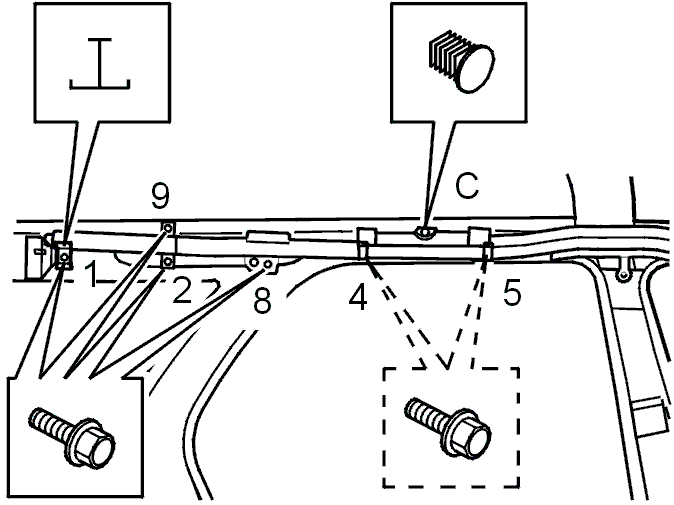

- Install clip C
- Install the ground terminal 1 (screw in until the thread engages only).
Remove the packaging by pulling it straight downwards.
NOTE:
Ensure that no bits of paper remain.
- Install screws 2 and 8.
(4 and 5 are installed when installing the grab handles)
Hook on the inflatable curtain module. Install screw 3.
NOTE:
It is very important that the hook is correctly installed.
Install:
- clip G.
(6 and 7 are installed when installing the grab handles)
Tighten screws 1-7. Tighten to 10 Nm.
Install:

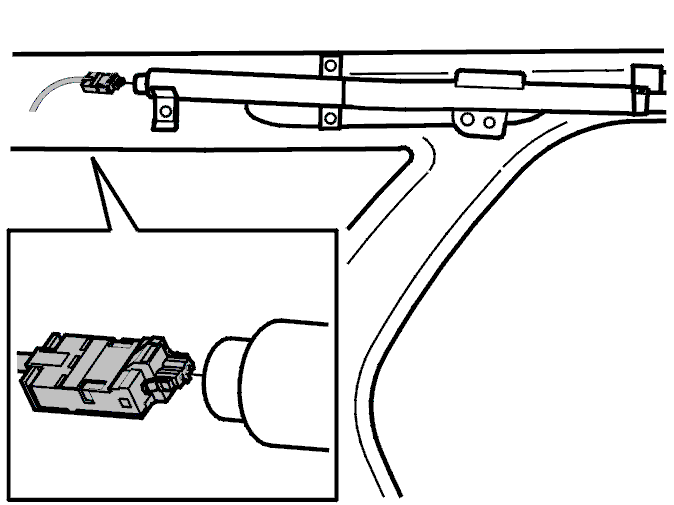

- The connector
- The headlining. See HEADLINING, REPLACING (2003-2008), or HEADLINING, REPLACING (2009-2012).
CAUTION:
When replacing the inflatable curtain module, part of the decal on the curtain must be torn off and stuck on the decal in the door opening.
