Install The New Boot: Notes

Press the catches for the boot into place in the top panel. See Fig 1.

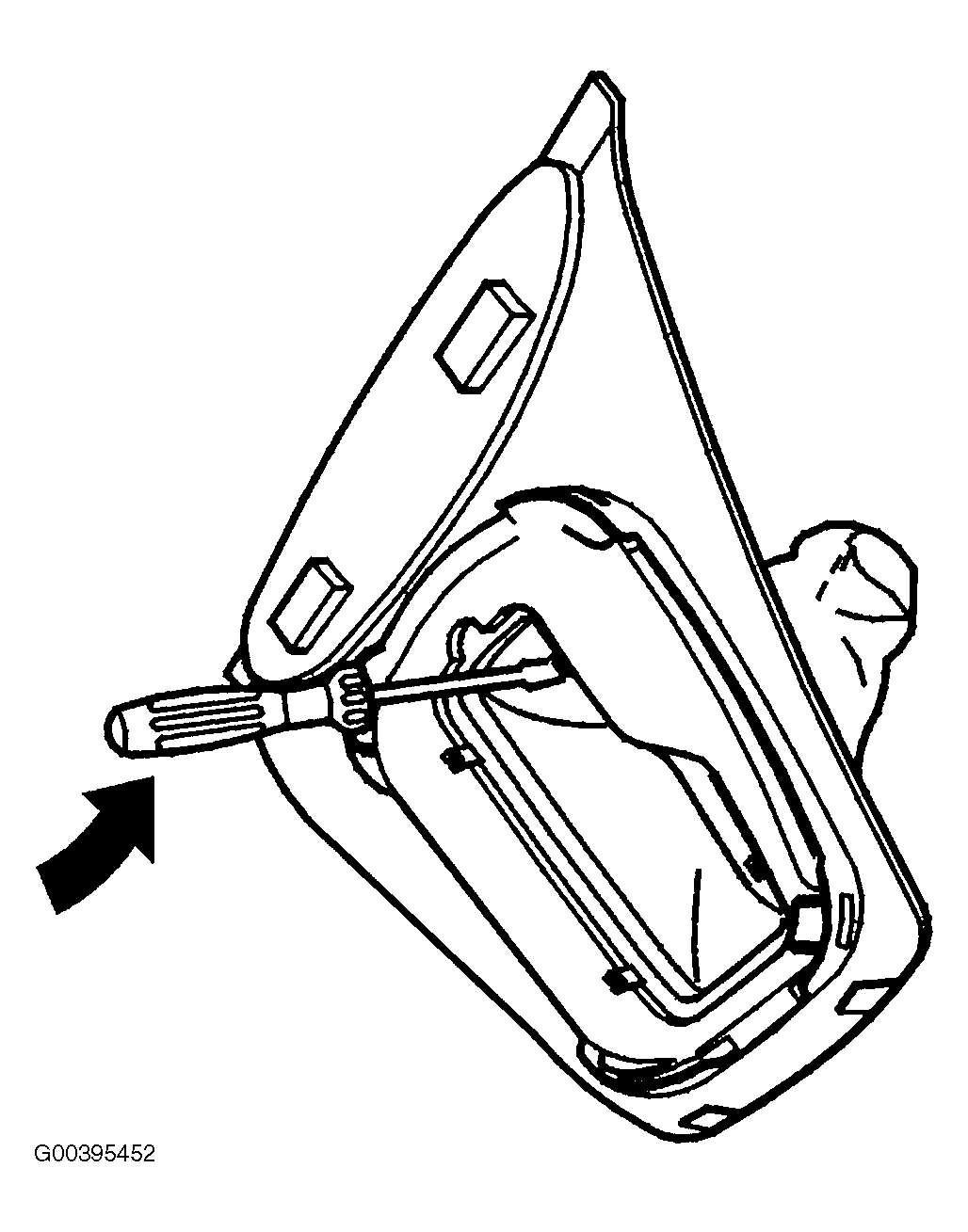

Fig 1: Pressing Out Catches From Top Panel
G00395452Courtesy of VOLVO CARS OF NORTH AMERICA.
