Reinstall The Panel On The Center Console

Press down the panel until it locks. See Fig 1.

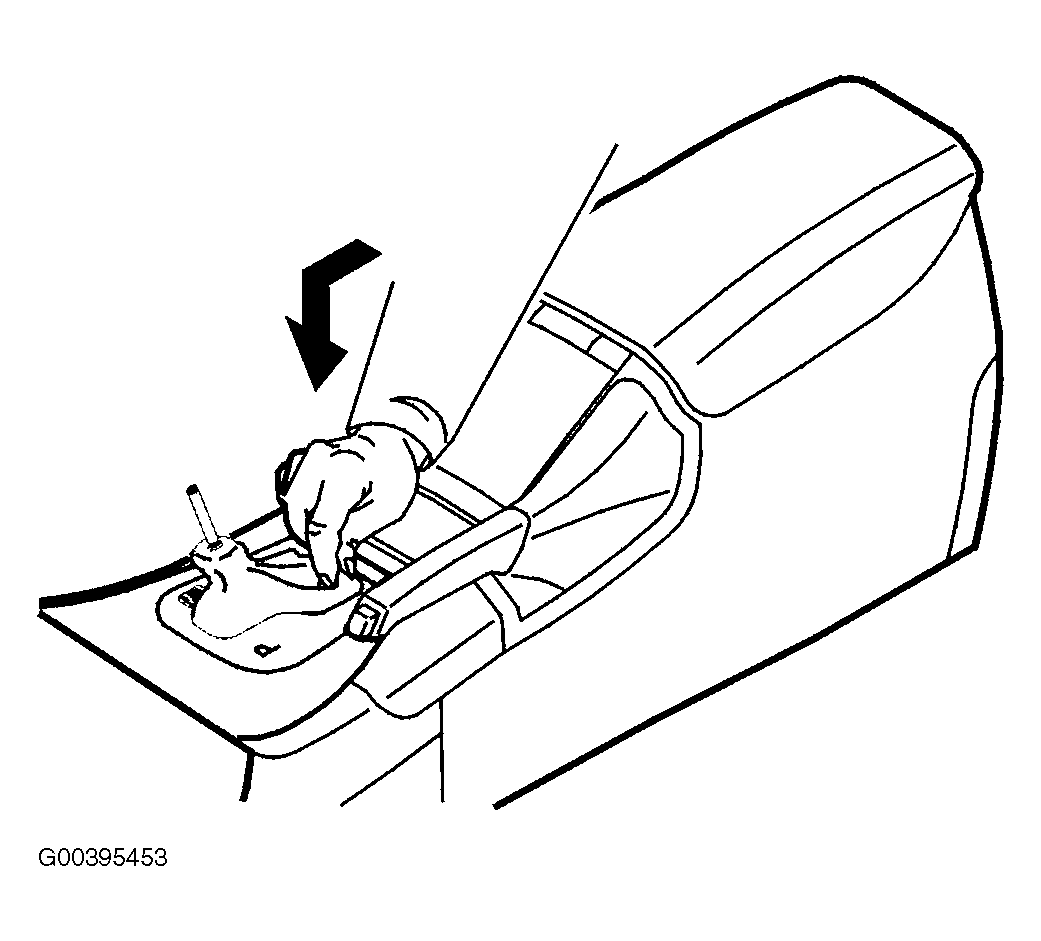

Fig 1: Installing Panel On Center Console
G00395453Courtesy of VOLVO CARS OF NORTH AMERICA.
