Checking The Control Module

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

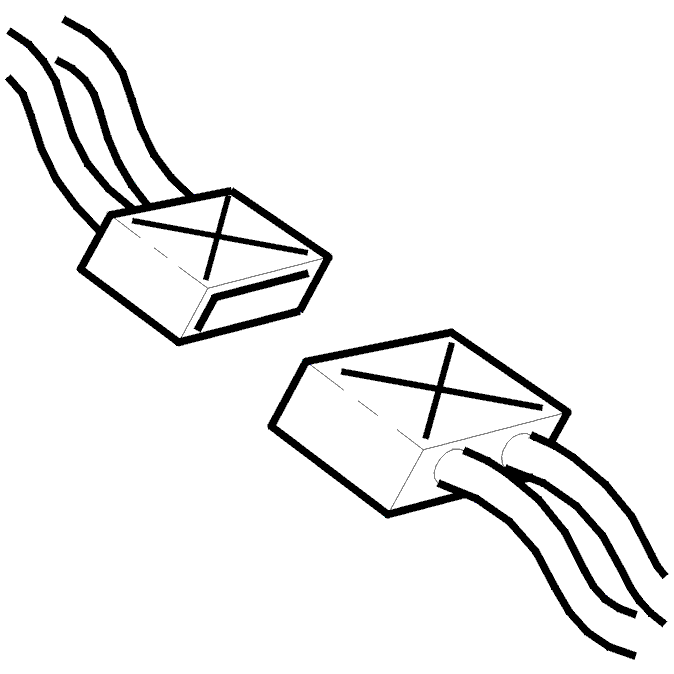

Fig 2: Identifying Connectors

Courtesy of VOLVO CARS CORPORATION

Fig 3: Identifying Control Module Connected

Courtesy of VOLVO CARS CORPORATION

• Ignition off
• Transmission connector disconnected
• Connect the control module.
• The breakout box connected
• Ignition on
• Gear selector in position P.

  Check the transmission control module (TCM). Measure the voltage between terminal #51 (#A51) and terminal #53 (#A53) on the breakout box. The voltage must be approximately 0 V.

  NOTE:

  When removing the transmission connector, the control module may store diagnostic trouble codes (DTCs) for the gear-shift position sensor, the shift solenoids and the temperature sensor etc.

  Try a new control module if the voltage exceeds 1 V.

  Other information:

  • To disconnect the transmission connector, see CONNECTING THE BREAKOUT BOX, GM AUTOMATIC TRANSMISSIONS
  • To replace the control module, see TRANSMISSION CONTROL MODULE (TCM), REPLACING
  • For information about signals, see SIGNAL SPECIFICATION .
  Fig 4: Identifying Voltage Display

  Courtesy of VOLVO CARS CORPORATION

Was the voltage above 1 V?

• YES

  Refer to VERIFICATION

• NO

  FAULT NOT FOUND:  Troubleshooting has been completed.
