Reading Off The Position Of The Open-Circuit
- Ignition on.
Reading off the result from a ring break diagnostic
Click the VCT2000 symbol to read off the result of the ring break diagnostic.
As well as the result from the ring break diagnostic, a list of the control modules included in the MOST network is provided for that car.

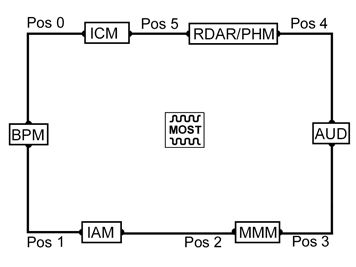

NOTE:The figure shows the MOST-net with maximum number of possible control modules. The number of control modules can vary between 2 and 6.
The following results can be obtained from a ring break diagnosis:
- If the diagnostic indicates an open-circuit in the communication on the MOST network, the result will be an open-circuit position
- The result will be OK if there is no fault on the MOST network Continue by selecting option 3 below.
- If the infotainment control module (ICM) receives a signal on the MOST network but is unable to decode it because the luminance is weak or the signals are distorted, the result will be POOR. Continue by selecting option 3 below.
Determining the position of the open-circuit
The position of the open-circuit is calculated by working backwards in the MOST network from the infotainment control module (ICM).
NOTE:The ring break diagnostic always counts backwards, irrespective of which, or how many control modules, are installed in the vehicle. To determine the position of the open-circuit, check the list to, see which control modules are installed in that particular vehicle. Then count backwards following the determined order. The number of control modules can vary between 2 and 6.
Two examples are outlined below:
- First open circuit position is indicated by 1. This means that the open circuit is in the Integrated Audio Module (IAM) or in the cable between the Bluetooth phone module (BPM) and the Integrated Audio Module (IAM).
- First open circuit position is indicated by 3. This means that the open circuit is in the Audio module (AUD) or in the cable between the Audio module (AUD) and the Multimedia module (MMM). The open circuit may be caused by a damaged optical connector in the Multimedia module (MMM). This means that Multimedia module (MMM) cannot interpret the incoming signal from Audio module (AUD).
Select the alternative for the control module to be checked.
Alternative 1: Refer to CHECKING CABLE AND COMPONENT
Remote Digital Audio Receiver (RDAR).
Audio module (AUD)
Integrated audio module (IAM).
Alternative 2: Refer to CHECKING CABLE AND COMPONENT
Phone module (PHM)
Bluetooth phone module (BPM).
Multimedia module (MMM)
Infotainment control module (ICM)
Alternative 3: Refer to CHECKING CABLE AND COMPONENT
The result from the ring break diagnostic indicates that the MOST network is OK.
The result from the ring break diagnostic is POOR.
