Installing the engine stabilizer brace

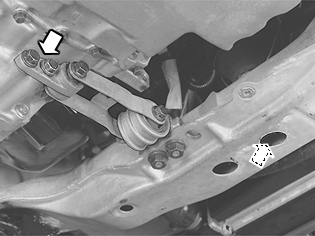

Fig 1: Identifying Engine Stabilizer Brace And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws. Tighten to 50 Nm  .

Install the screw for the front engine pad. Tighten to 50 Nm  .
