Diagnostic Trouble Code (DTC) Information DDM/PDM-0010

Condition

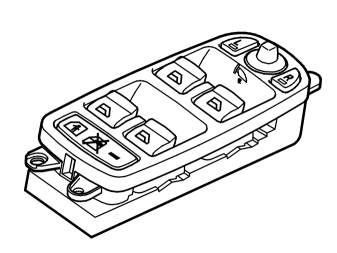

Fig 1: Identifying Control Panel

Courtesy of VOLVO CARS CORPORATION

The diagnostic trouble code (DTC) is stored if the control module registers an open-circuit in the signal from the control panel for the power window mechanism.

Substitute Value

• None.

Possible Source

• The control panel for the power window mechanism is disconnected.

Fault symptom[s]

• The power window mechanism in the rear door does not operate
• The driver's side power window mechanism does not operate
• Passenger side power window mechanism does not operate.
