Diagnostic Trouble Code (DTC) Information CRM-2022

Condition

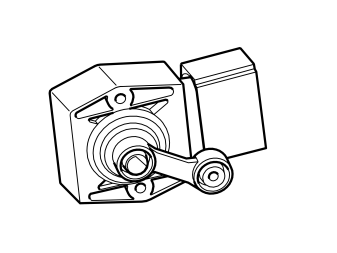

Fig 1: Identifying Convertible Roof Position Sensor

Courtesy of VOLVO CARS CORPORATION

The diagnostic trouble code (DTC) is generated when the signal cable between the position sensor and Convertible Roof Module (CRM) is short-circuited to ground.

The diagnostic trouble code (DTC) can be diagnosed in ignition positions 0, I, II and III.

Substitute Value

• None.

Possible Source

• Short-circuit to ground in the cable.
• Open-circuit in the signal cable to the front / rear position sensor.
• Position sensor not working.
• Incorrect installation of position sensor.

Fault symptom[s]

• None or limited roof maneuvering
