Diagnostic Trouble Code (DTC) Information DDM-Dd11

Condition

The Driver door module (DDM) communicates with the control panel in the driver door via LIN-communication. The diagnostic trouble code (DTC) is stored if the Driver door module (DDM) registers that communication cannot be established with the control panel.

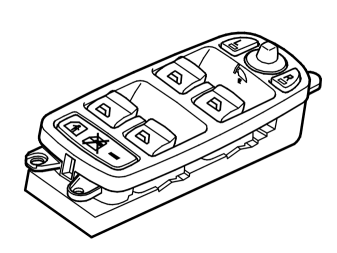

Fig 1: Identifying Control Panel Buttons Switch Pack

Courtesy of VOLVO CARS CORPORATION

Substitute Value

• None.

Possible Source

• Damaged control panel.
• Open circuit on signal cable.

Fault symptom[s]

• Driver door control panel does not work
