Diagnostic Trouble Code (DTC) Information PDM-0017

Condition

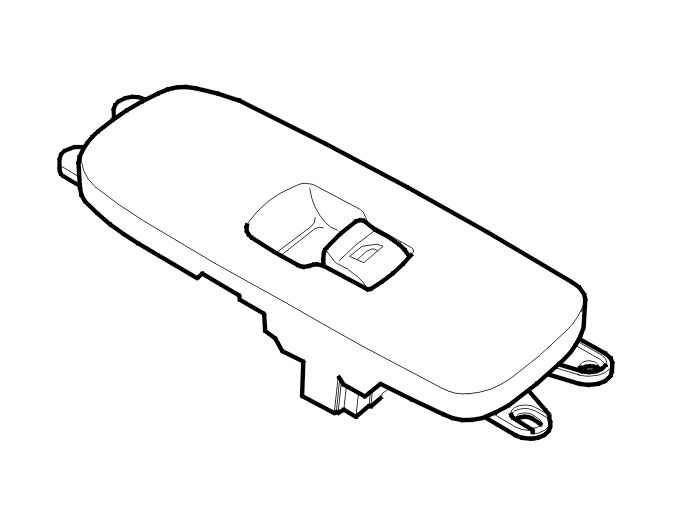

Fig 1: Identifying Passenger Window Control

Courtesy of VOLVO CARS CORPORATION

The diagnostic trouble code (DTC) is stored if the control module registers that the UP and DOWN signals for the power window mechanism are active simultaneously.

Substitute Value

• None.

Possible Source

• Damaged switch for the power window mechanism.

Fault symptom[s]

• Passenger side power window mechanism does not operate.
