Checking The Cable

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Connectors Disconnected

Courtesy of VOLVO CARS CORPORATION

• Ignition off.
• Disconnect the connector for the left-hand subwoofer behind the rear seat.
• Disconnect the connector for the right-hand subwoofer behind the rear seat.
• Disconnect the 16-pin connector for the Subwoofer module (SUB).

Check the cable terminals in the female and male sections of the connector. The cable terminals must not be damaged or pressed back.

Check the signal cable between the Subwoofer module (SUB) terminal #B5 and right-hand bass speaker terminal #2. Check for a short-circuit to supply voltage. Check for a short-circuit to ground.

Check the signal cable between the Subwoofer module (SUB) terminal #B12 and right-hand bass speaker terminal #1. Check for a short-circuit to supply voltage. Check for a short-circuit to ground.

Check the signal cable between the Subwoofer module (SUB) terminal #B3 and left-hand bass speaker terminal #2. Check for a short-circuit to supply voltage. Check for a short-circuit to ground.

Check the signal cable between the Subwoofer module (SUB) terminal #B9 and left-hand bass speaker terminal #1. Check for a short-circuit to supply voltage. Check for a short-circuit to ground.

Remedy as necessary.

Other information

• see SIGNAL SPECIFICATION
• see CONNECTING THE BREAKOUT BOX
• see REAR SEAT BACKREST SPEAKER (2011)
• see SUBWOOFER MODULE (SUB) (2011)
• see CHECKING WIRING AND TERMINALS

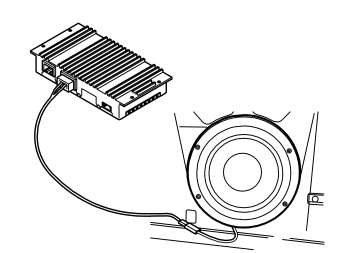

Fig 3: Identifying Subwoofer Module (SUB) And Subwoofer

Courtesy of VOLVO CARS CORPORATION

• Continue

  Refer to VERIFICATION
