Front Axle Sensor And Rear Axle Sensor: Connection

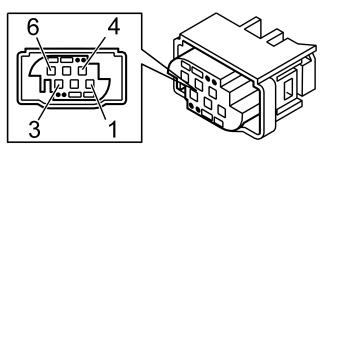

Fig 1: Identifying Axle Sensor Connector Terminals
GLL153796Courtesy of VOLVO CARS CORPORATION
Connection front axle sensor  Signal type  Miscellaneous
1 Ground 0V
4 Signal, front axle sensor 0, 5 - 4, 5V
5 Power supply 5V
Connection rear axle sensor  Signal type  Miscellaneous
1 Ground 0V
4 Signal, rear axle sensor 0, 5 - 4, 5V
5 Power supply 5V
