Signal Table

Connector A, GDL-Master

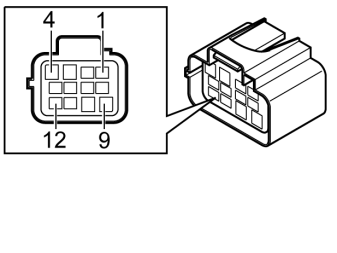

Fig 1: Identifying Gas Discharge Lamp Module (GDL) Connector A Terminals

GLL167057

Courtesy of VOLVO CARS CORPORATION

SIGNALS BETWEEN GDL-MASTER AND AXLE SENSOR

Terminal GDL-Master	Signal type	Miscellaneous
A:1	Signal, front axle sensor	0, 5 - 4, 5V
A:2	Signal, rear axle sensor	0, 5 - 4, 5V
A:3	Voltage feed, axle sensors	5.0 ± 0.5V / 15mA
A:4	Ground, the axle sensors	0 V / 15 mA

SIGNALS BETWEEN GDL-MASTER AND CEM

Terminal GDL-Master	Signal type	Miscellaneous
A:5	High beam.	13.5 V / 0.6 - 1.2 A
A:6	Power supply	13.5 V / <1.5 A
A:9	Dipped beam	13.5 V / 3 - 10 A
A:12	LIN IN	0V - U_bat

SIGNALS BETWEEN GDL-MASTER AND GDL-SLAVE

Terminal GDL-Master	Signal type	Miscellaneous
A:11	LIN OUT	0V - Ubat

Connector B, GDL-Master

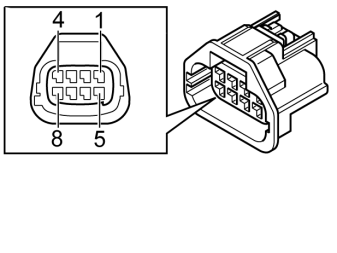

Fig 2: Identifying Gas Discharge Lamp Module (GDL) Connector B Terminals

GLL167114

Courtesy of VOLVO CARS CORPORATION

SIGNALS BETWEEN GDL-MASTER/SLAVE AND RESPECTIVE HEADLIGHT

Terminal GDL-Master	Signal type	Miscellaneous
B:1	Igniter Z+
B:2	Ground height motor
B:3	Signal magnet
B:4	Voltage feed magnet
B:5	Igniter Z-
B:6	Igniter ZH
B:7	Signal height motor
B:8	Voltage feed height motor
