Signal Specification
General
All values below are measured between the relevant terminal in column 1 and terminal #2F in column 2 (power ground). Unless otherwise stated in parenthesis after the table entry.
NOTE:
It is important to connect the breakout box and check the ground terminals before taking readings.
| U= | DC voltage in volts (V) | Ulow = | Voltage approximately 0 V |
| Ubat = | Battery voltage (V) |

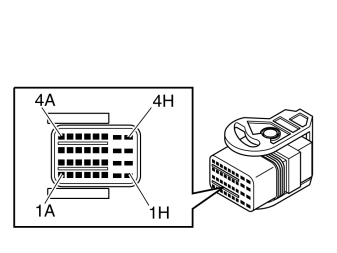

Connector, headlamp control module (HCM)
| Control module terminal | Signal type | Ignition on | Other |
|---|---|---|---|
| 1A - H1 | - | - | - |
| 2A | Communication CAN_L high speed network | The voltage is 1.5-2.5 V during communication | |
| 2B | - | - | - |
| 2C | Left headlamp control unit (LHCU), LIN communication | During communication the voltage is 0V - U bat | |
| 2D | Position sensor, ground | Ulow | |
| 2E | Front position sensor, signal | 0.5-4.5V | |
| 2F | Power ground | Ulow | |
| 2G | - | - | - |
| 2H | - | - | - |
| 3A | Communication CAN_H high speed network | The voltage is 2.0-3.5 V during communication | |
| 3B | Internal signal | ||
| 3C | Right headlamp control unit (RHCU), LIN communication | During communication the voltage is 0V - U bat | |
| 3D | Position sensor, voltage supply | 5V | |
| 3E | Rear position sensor, signal | 0.5-4.5V | |
| 3F | 15-feed | Ubat | |
| 3G | - | - | - |
| 3H | - | - | - |
| 4A - 4H | - | - |

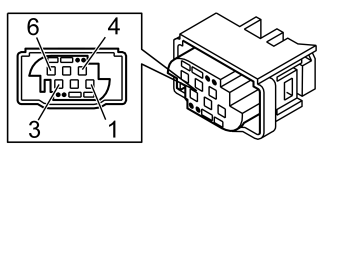

Connector, front and rear position sensors
FRONT POSITION SENSOR
| Position sensor connection | Control module terminal | Signal type | Other |
|---|---|---|---|
| 1 | 2D | Ground | |
| 2 | - | - | |
| 3 | - | - | |
| 4 | 2E | Signal, position sensor | |
| 5 | 3D | Power supply, +5V | |
| 6 | - | - |
REAR POSITION SENSOR
| Position sensor connection | Control module terminal | Signal type | Other |
|---|---|---|---|
| 1 | 2D | Ground | |
| 2 | - | - | |
| 3 | - | - | |
| 4 | 3E | Signal, position sensor | |
| 5 | 3D | Power supply, +5V | |
| 6 | - | - |
