Description Of Parameters

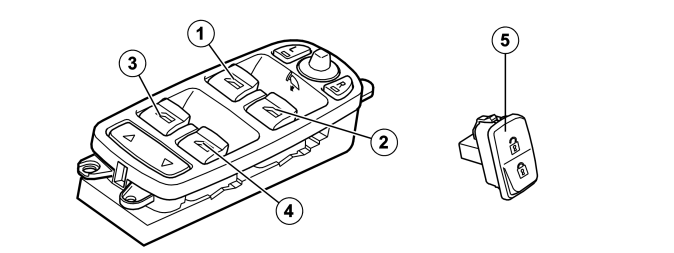

1. Button for operating driver's door window.
2. Button for operating passenger door window.
3. Button for operating rear door window on driver's side.
4. Button for operating rear door window on passenger side.
5. Button for locking and unlocking central locking system.

Parameters, status

Front driver's side, window button up

Readout of whether the control module perceives window button 1 as active or inactive in the up direction.

Front driver's side, window button down

Readout of whether the control module perceives window button 1 as active or inactive in the down direction.

Front passenger side, window button up

Readout of whether the control module perceives window button 2 as active or inactive in the up direction.

Front passenger side, window button down

Readout of whether the control module perceives window button 2 as active or inactive in the down direction.

Rear driver's side, window button up

Readout of whether the control module perceives window button 3 as active or inactive in the up direction.

Rear driver's side, window button down

Readout of whether the control module perceives window button 3 as active or inactive in the down direction.

Rear passenger side, window button up

Readout of whether the control module perceives window button 4 as active or inactive in the up direction.

Rear passenger side, window button down

Readout of whether the control module perceives window button 4 as active or inactive in the down direction.

Central locking switch, lock

Readout of whether the control module perceives the driver's door central locking button as active or inactive for locking.

Central locking switch, unlock

Readout of whether the control module perceives the driver's door central locking button as active or inactive for unlocking.

Window motor, up

Readout of whether the control module perceives the driver's door window motor as active or inactive in the up direction.

Window motor, down

Readout of whether the control module perceives the driver's door window motor as active or inactive in the down direction.

Lock motor M1

Readout of whether the control module perceives driver's door lock motor M1 as active or inactive. Lock motor M1 is active when locking the central locking system.

Lock motor M2

Readout of whether the control module perceives driver's door lock motor M2 as active or inactive. Lock motor M2 is active when unlocking the central locking system and/or deadlocks.

Lock motor M3

Readout of whether the control module perceives driver's door lock motor M3 as active or inactive. Lock motor M3 is active when locking deadlocks.

Mirror motor MUD (Mirror Up and Down)

Readout of whether the control module perceives driver's door mirror motor MUD (Mirror Up and Down) as active or inactive.

Mirror motor MLR (Mirror Left and Right)

Readout of whether the control module perceives driver's door mirror motor MLR (Mirror Left and Right) as active or inactive.

Mirror Motor MC (Mirror Common)

Readout of whether the control module perceives driver's door mirror motor MC (Mirror Common) as active or inactive.

Mirror motor MF (Mirror Fold)

Readout of whether the control module perceives driver's door mirror motor MF (Mirror Fold) as active or inactive.

Mirror heating

Readout of whether the control module perceives driver's door mirror heating as active or inactive.

Mirror light

Readout of whether the control module perceives driver's door mirror light as active or inactive. The key must not be in the ignition switch when reading the status.

Direction indicator

Readout of whether the control module perceives driver's door direction indicator as active or inactive.

Window initiation

Readout of whether the driver's door window is initiated.

Parameters, value

Power supply

Readout of power supply to the control module.

Driver's door mirror position, X axis

Readout of driver's door mirror position along the X axis.

Driver's door mirror position, Y axis

Readout of driver's door mirror position along the Y axis.
