Description Of Parameters

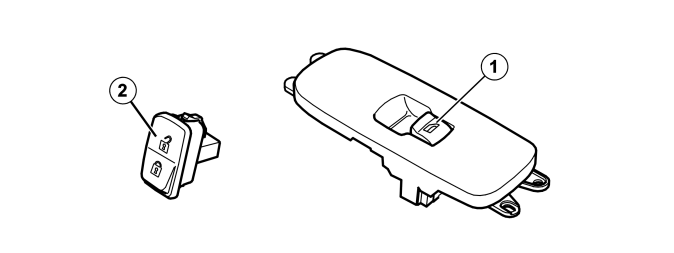

- Button for operating passenger door window.
- Button for locking and unlocking central locking system.
Parameters, status
Window button up
Readout of whether the control module perceives the window button as active or inactive in the up direction.
Window button down
Readout of whether the control module perceives the window button as active or inactive in the down direction.
Central locking switch, lock
Readout of whether the control module perceives the passenger door central locking button as active or inactive for locking.
Central locking switch, unlock
Readout of whether the control module perceives the passenger door central locking button as active or inactive for unlocking.
Window motor, up
Readout of whether the control module perceives the passenger door window motor as active or inactive in the up direction.
Window motor, down
Readout of whether the control module perceives the passenger door window motor as active or inactive in the down direction.
Lock motor M1
Readout of whether the control module perceives passenger door lock motor M1 as active or inactive.
Lock motor M2
Readout of whether the control module perceives passenger door lock motor M2 as active or inactive.
Lock motor M3
Readout of whether the control module perceives passenger door lock motor M3 as active or inactive.
Mirror motor MUD (Mirror Up and Down)
Readout of whether the control module perceives passenger door mirror motor MUD (Mirror Up and Down) as active or inactive.
Mirror motor MLR (Mirror Left and Right)
Readout of whether the control module perceives passenger door mirror motor MLR (Mirror Left and Right) as active or inactive.
Mirror Motor MC (Mirror Common)
Readout of whether the control module perceives passenger door mirror motor MC (Mirror Common) as active or inactive.
Mirror motor MF (Mirror Fold)
Readout of whether the control module perceives passenger door mirror motor MF (Mirror Fold) as active or inactive.
Mirror heating
Readout of whether the control module perceives passenger door mirror heating as active or inactive.
Mirror light
Readout of whether the control module perceives passenger door mirror light as active or inactive.
Direction indicator
Readout of whether the control module perceives passenger door direction indicator as active or inactive.
Window initiation
Readout of whether the passenger door window is initiated.
Parameters, value
Power supply
Readout of power supply to the control module.
Passenger door mirror position, X axis
Readout of passenger door mirror position along the X axis.
Passenger door mirror position, Y axis
Readout of passenger door mirror position along the Y axis.
