Checking Communication With Additive Dosing Module (ADM)

HINT: The CAN communication with the control module is probably OK if the control module ID can be read off. In that case the fault is probably intermittent and will then be more difficult to trace.

Try to communicate with the additive dosing module (ADM) by reading off the control module ID.

Click the symbol for VCT2000 to begin reading off.

Fig 1: Identifying VCT2000

Courtesy of VOLVO CARS CORPORATION

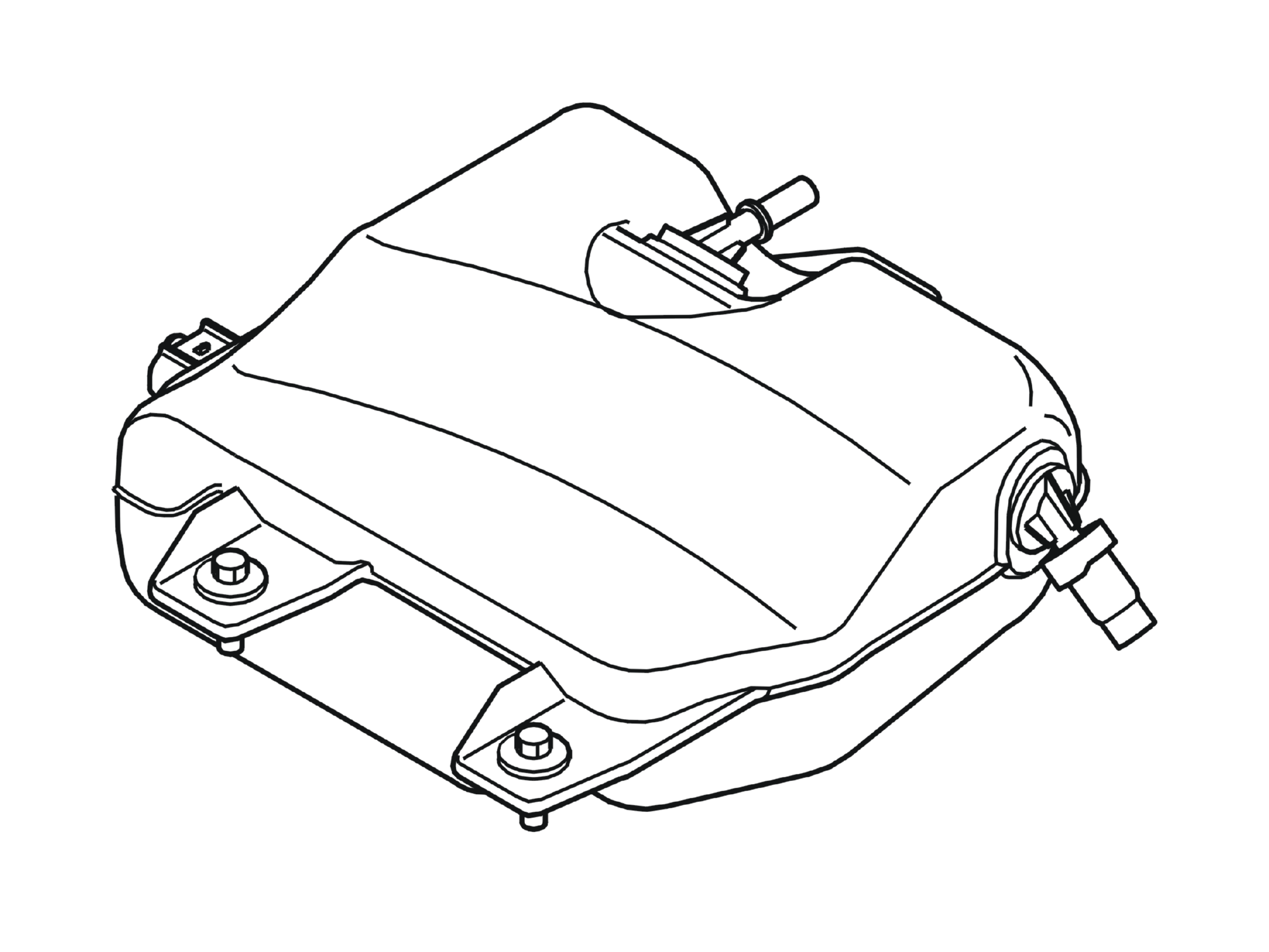

Fig 2: Identifying Additive Dosing Module (ADM)

Courtesy of VOLVO CARS CORPORATION

• Continue

  Refer to SIGNAL MISSING
