Engine Control Module (ECM): Removal

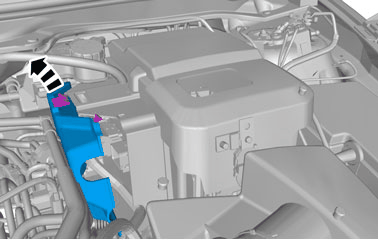

Fig 1: Removing Cover
GLL169577Courtesy of VOLVO CARS CORPORATION

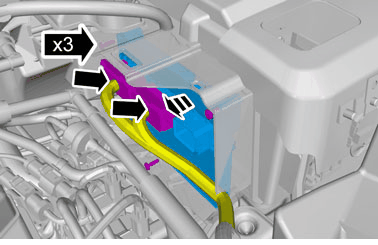

Fig 2: Identifying Engine Control Module Connectors
GLL169578Courtesy of VOLVO CARS CORPORATION
CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

NOTE:

Make sure that the component terminals are not bent or damaged.
