Removing The Additive Dosing Module (ADM)

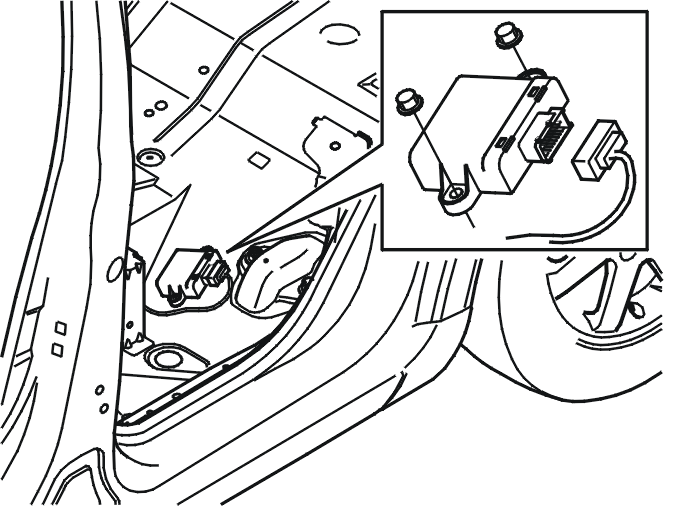

Fig 1: Removing Additive Dosing Module (ADM)
GLL146008Courtesy of VOLVO CARS CORPORATION

Remove the 2 nuts.

Lift out the control module. Disconnect the connector (x 1).
