Crankshaft Position Sensor (CKP): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the air filter housing, see AIR CLEANER HOUSING

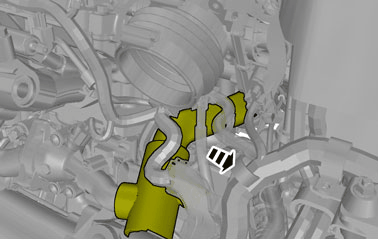

Fig 1: Identifying Pipe
GLL178526Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Removing Crankshaft Position Sensor
GLL178521Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  M6

10 Nm
