Trailer Module (TRM)

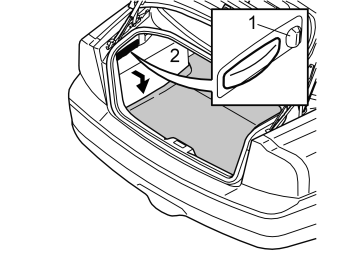

Fig 1: Turn Nob On Left-Hand Rear Panel And Fold Panel Inwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the locking knob (1) 90° (anti-clockwise) and fold out the rear side panel (2) on the left-hand side of the luggage compartment.

Fig 2: Removing Upper Rear Clip From Left-Hand Front Side Panel In Luggage Compartment And Folding Out Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the upper rear clip from the left-hand front side panel in the luggage compartment and fold out the panel.
