Removing The Control Module

Fig 1: Identifying Integrated Relay/Fusebox In Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

The rear electronic module (REM) is a separate unit in the relay box in the cargo compartment.

• Remove the integrated relay / fusebox. See Removing The Integrated Relay/Fusebox In The Cargo Compartment .

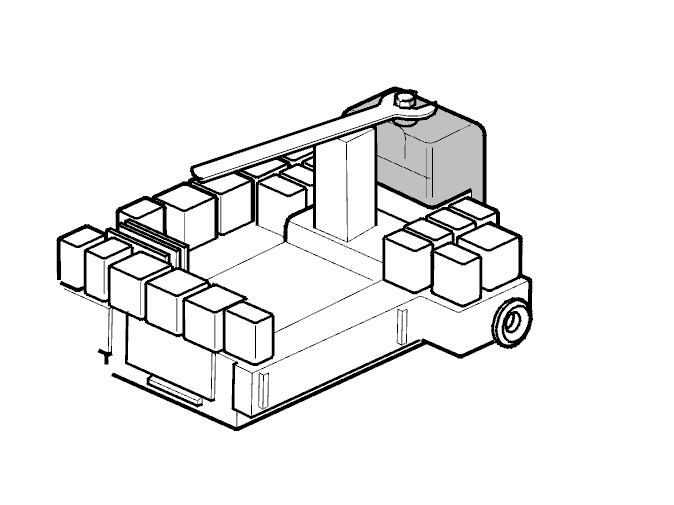

Fig 2: Disconnecting Control Module Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Unscrew the screw holding the connector so that it is free of its threads. Check that the screw is free using your fingers
• Disconnect the connector. Use an open spanner and a support. See the illustration.

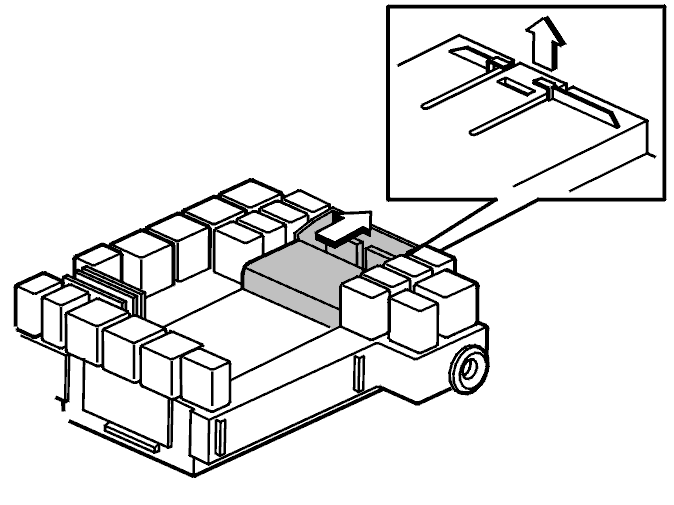

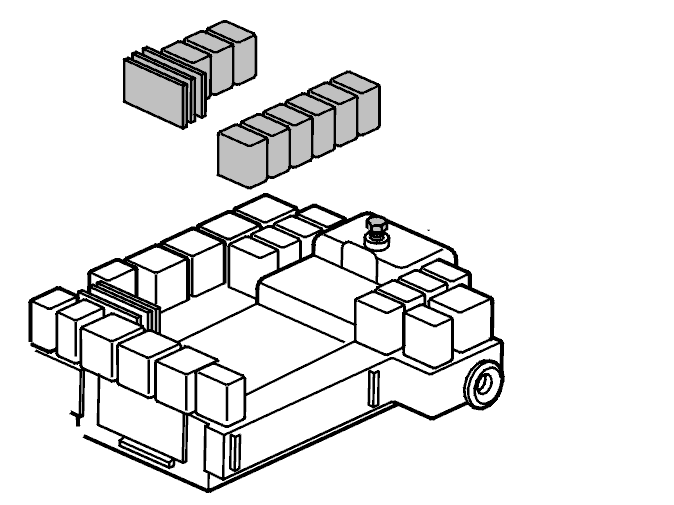

Fig 3: Identifying Relay Box In Passenger Compartment/Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove all relays and shunts bridged to the control module.

  Note the locations.

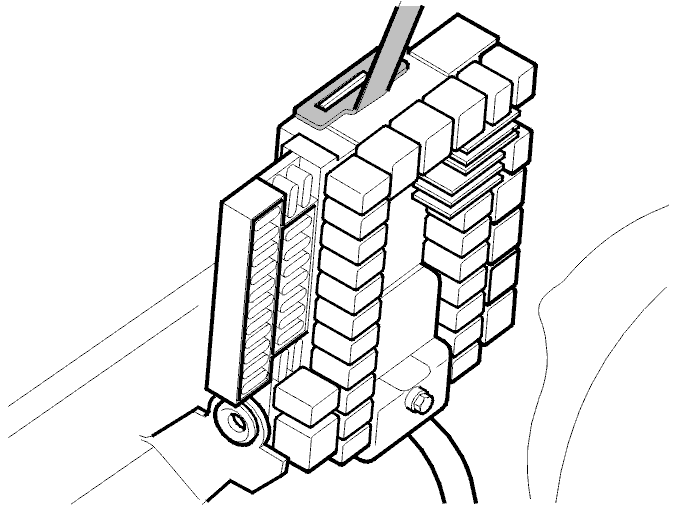

Fig 4: Removing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Release the catch on the rear. Use a screwdriver
• Lift and pull out the control module.
