Installing The Control Module

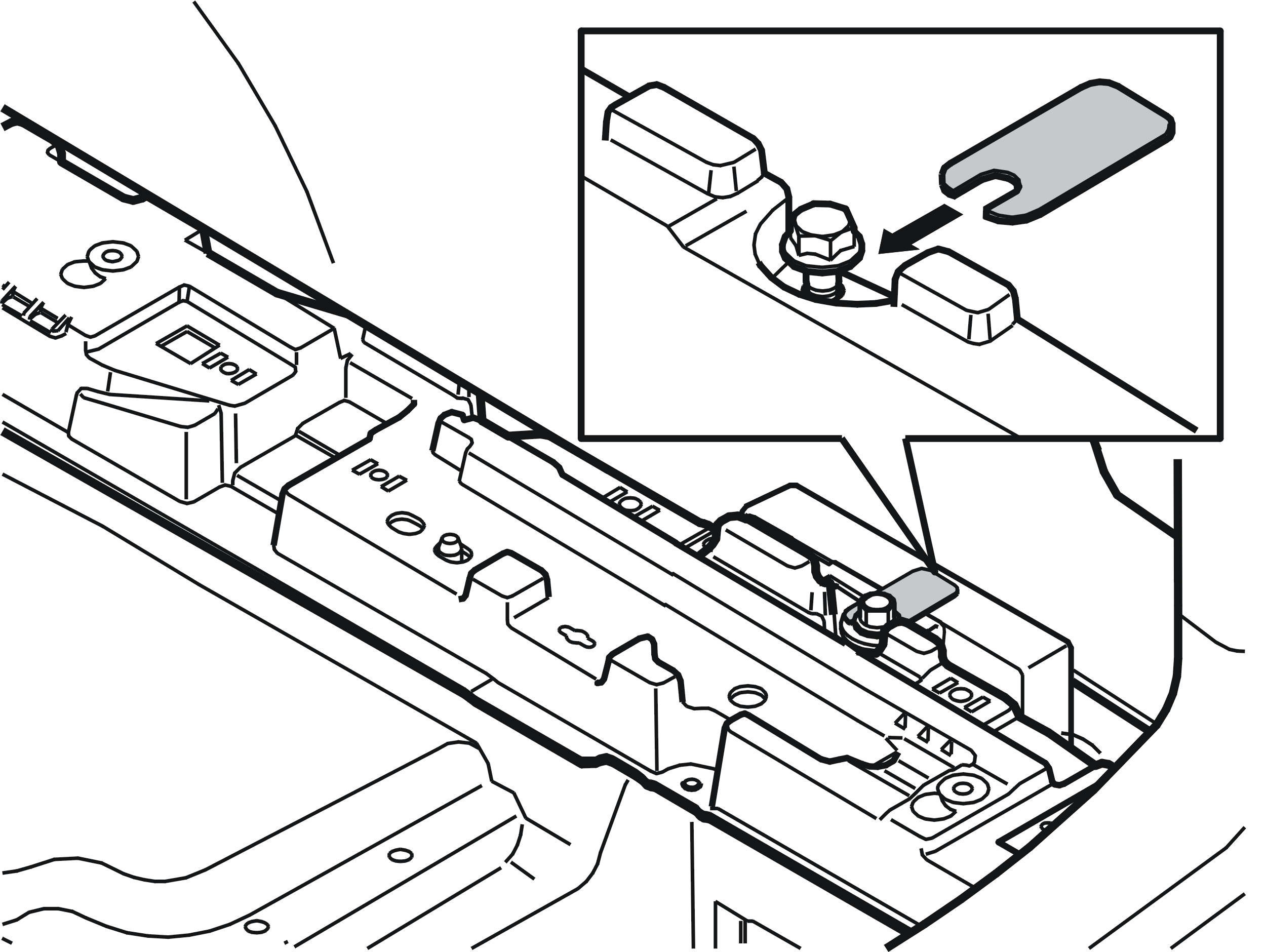

Fig 1: Installing Accessory Control Module Lock Plate
GLL106173Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the wiring to the outside of the control module.

Place the control module in the bracket and press it down.

Install the lock plate. Tighten the screw. Tighten to 10 Nm  .

Reinstall the side panel.

After consultation with the customer, new software that corresponds to the car can be downloaded. Software for the accessory electronic module must be downloaded first. Software for the connected accessories must then be downloaded.

Check that no diagnostic trouble codes (DTCs) have been stored during the repair.
