Checking the control module for open-circuits

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off
• Remove the 15i power supply relay
• Ignition on.

  Check the driver circuit for the relay coil for an open-circuit as follows: activate the relay driver. Measure the voltage between terminals #1 and #2 on the relay base.

  The voltage between terminals #1 and #2 should be battery voltage.

  If the value deviates excessively, check the voltage between terminal #2 and the battery voltage and between terminal #1 and ground. Both should equal battery voltage.

  HINT: Do not forget to check that the power supply to the control module is OK.

  Other information

  • To access and replace the relay, see Central electronic module (CEM), replacing
  • For further information about the fuses and relays, see the Wiring Diagram
  • See Checking wiring and terminals .
  Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

  Courtesy of VOLVO CARS OF NORTH AMERICA.

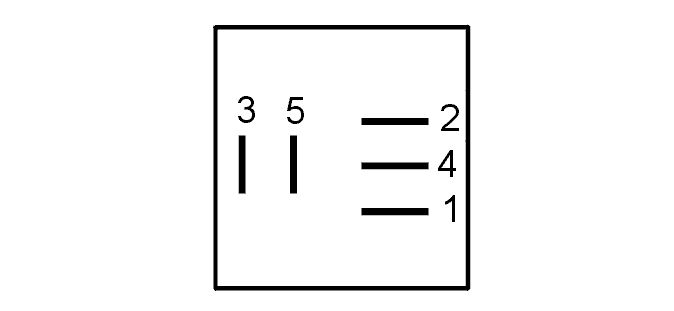

  Fig 3: Identifying Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Was a fault detected?

• YES

  Refer to Verification

• NO

  Refer to Checking the control module for short-circuits
