Removing the generator (GEN)

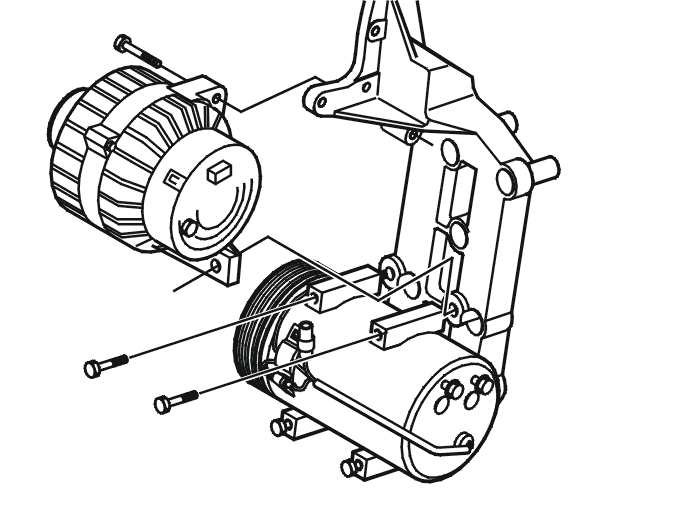

Fig 1: Identifying Generator and Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the lower screws for the air conditioning (A/C) compressor (so that there is some clearance).

Remove:

• the nut for the battery positive lead
• the connector
• the 3 screws
• the generator (GEN).

Lift out the generator.
