Power steering pump, replacing: Preparation

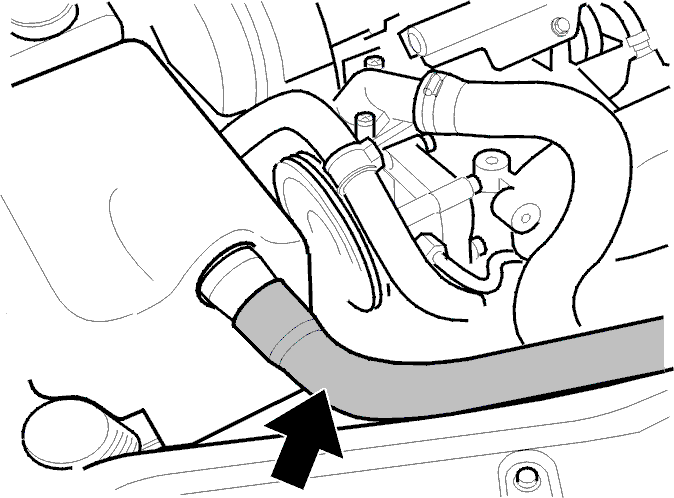

Fig 1: Identifying Cold Air Inlet Hose To Control Module
GLL107846Courtesy of VOLVO CARS OF NORTH AMERICA.
WARNING:

Used fluid is considerably more dangerous than new fluid. Avoid skin contact with the oil.

Remove:

NOTE:

If there is dirt in the fluid, drain the system and remove the hoses from the steering gear.

Remove the auxiliaries belt. See Auxiliaries belt / belt tensioner, replacing .
