Checking Fuse 11C/35

Remove the fuse 11C/35 in boot fuse box.

Check that fuse is intact and check for contact resistance and oxidation as described in Contact resistance and oxidation .

Additional information

• To access relay/fuse box in the boot, see Integrated relay/fusebox cargo compartment/Rear electronic module (REM), replacing .

Fig 1: Identifying Voltmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

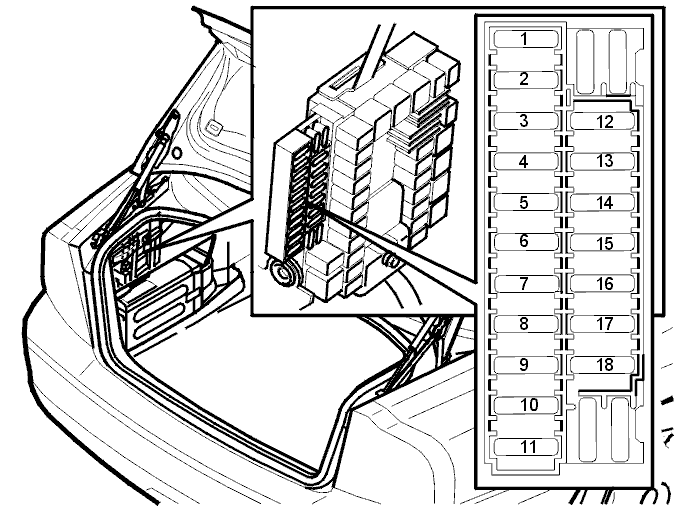

Fig 2: Identifying Fuse Holder In Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Is the fuse intact?

• YES

  Refer to Checking voltage

• NO

  Refer to Checking for a short circuit
