Diagnostic Trouble Code (DTC) Information CEM-6F05

Condition

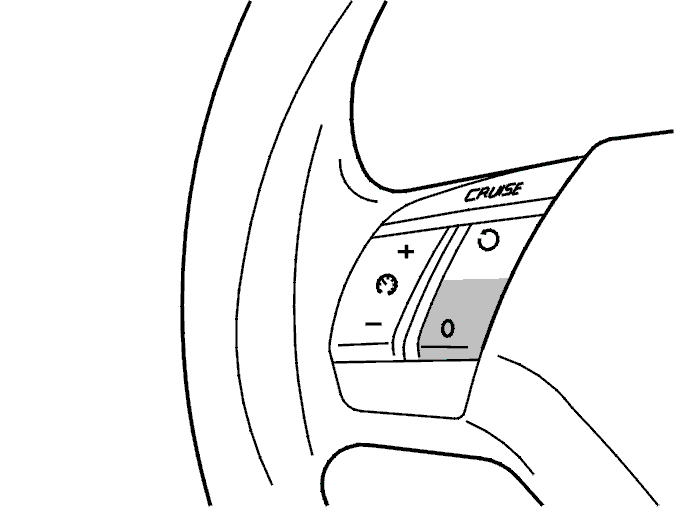

Fig 1: Identifying Cancel Button For Cruise Control

Courtesy of VOLVO CARS OF NORTH AMERICA.

The central electronic module (CEM) checks the signal from the Cancel button for the cruise control.

The diagnostic trouble code (DTC) is stored if the central electronic module (CEM) registers that the Cancel button has been active for more than 3 minutes.

The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute Value

• None.

Possible Source

• The Cancel button is jammed in the pressed in position
• Damaged Cancel button.

Fault symptom[s]

• Cruise control does not function at all.
