Diagnostic Trouble Code (DTC) Information CEM-7A01

Condition

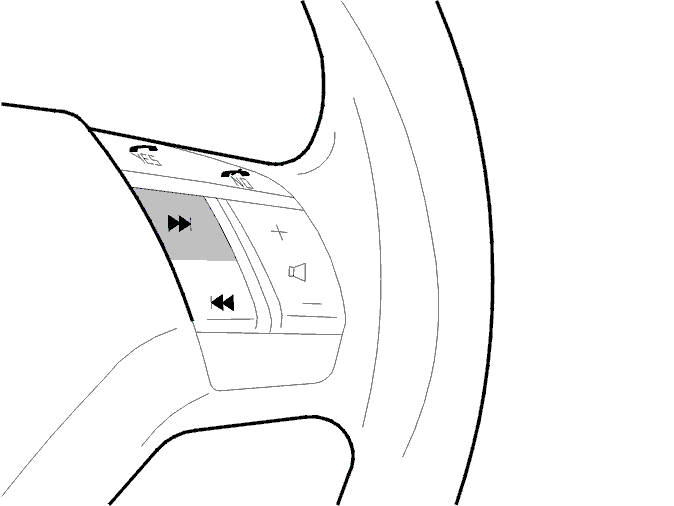

Fig 1: Identifying Scan- Button

Courtesy of VOLVO CARS OF NORTH AMERICA.

The central electronic module (CEM) checks the signal from the Scan- button.

The diagnostic trouble code (DTC) is stored if the central electronic module (CEM) registers that the Scan- button has been active for more than 1 minute.

The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute Value

• None.

Possible Source

• The Scan- button is jammed in the pressed in position
• Damaged Scan- button.

Fault symptom[s]

• The radio buttons on the steering wheel do not function
• The phone is not working.
